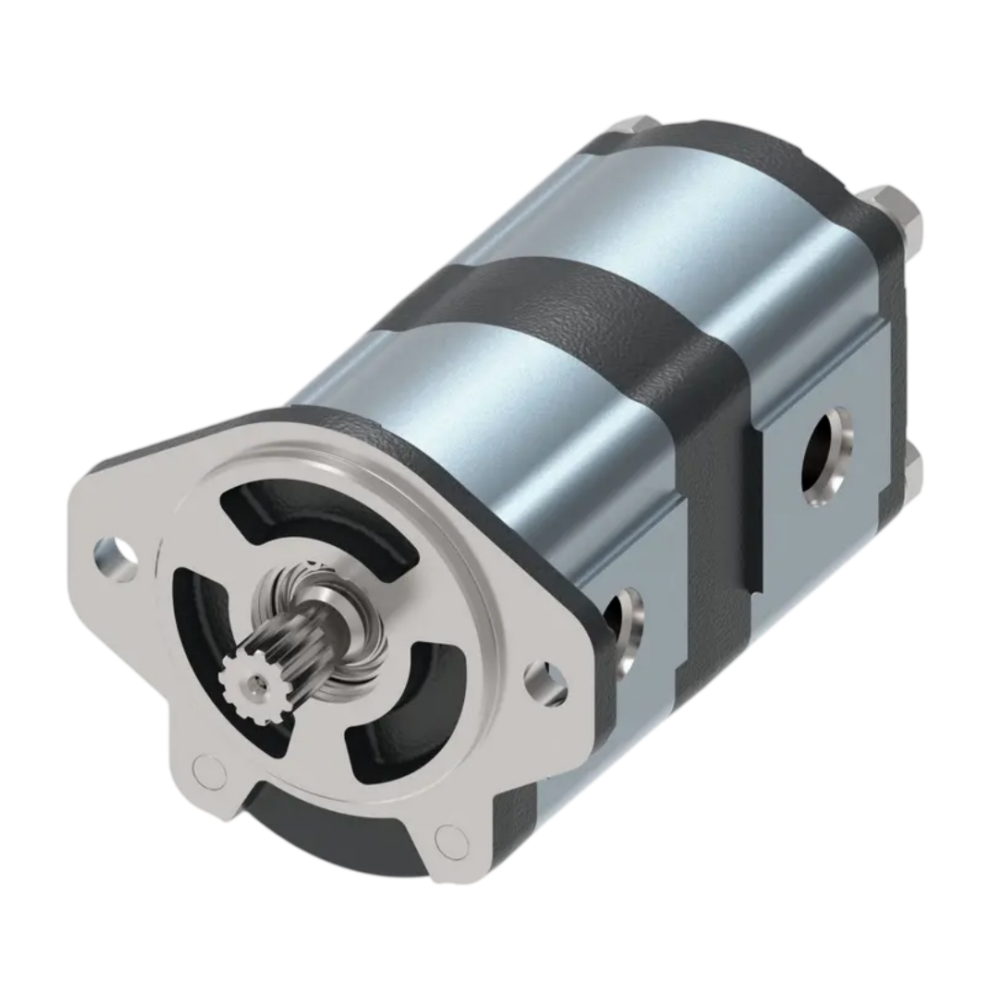

Danfoss Aluminum Double Stage Lumi Gear Pump

Frame size: Gr2
Displacements from 5.1 cm³/rev (0.31 in³/rev) to 24.0 cm³/rev (1.46 in³/rev)
Rated pressure up to 240 bar (3480 psi)
Max speed up to 4000 rpm
SAE, European, DIN & ISO Flange, Porting styles & Shaft options
Built to ISO 9001 Standards
Integral valving

Variations

Edit selections

Displacement: 5.1 cm3 /rev

5.1 cm3 /rev

6 cm3 /rev

8.2 cm3 /rev

9.5 cm3 /rev

11 cm3 /rev

12.3 cm3 /rev

16.5 cm3 /rev

18 cm3 /rev

20 cm3 /rev

24 cm3 /rev

Select variations and quantity

Displacement: 5.1 cm3 /rev

The min. inquiry quantity is 0. Add 0 more to continue.

5.1 cm3 /rev

6 cm3 /rev

8.2 cm3 /rev

9.5 cm3 /rev

11 cm3 /rev

12.3 cm3 /rev

16.5 cm3 /rev

18 cm3 /rev

20 cm3 /rev

24 cm3 /rev

Subtotal

GET A QUOTE

Download

View all downloads

Description

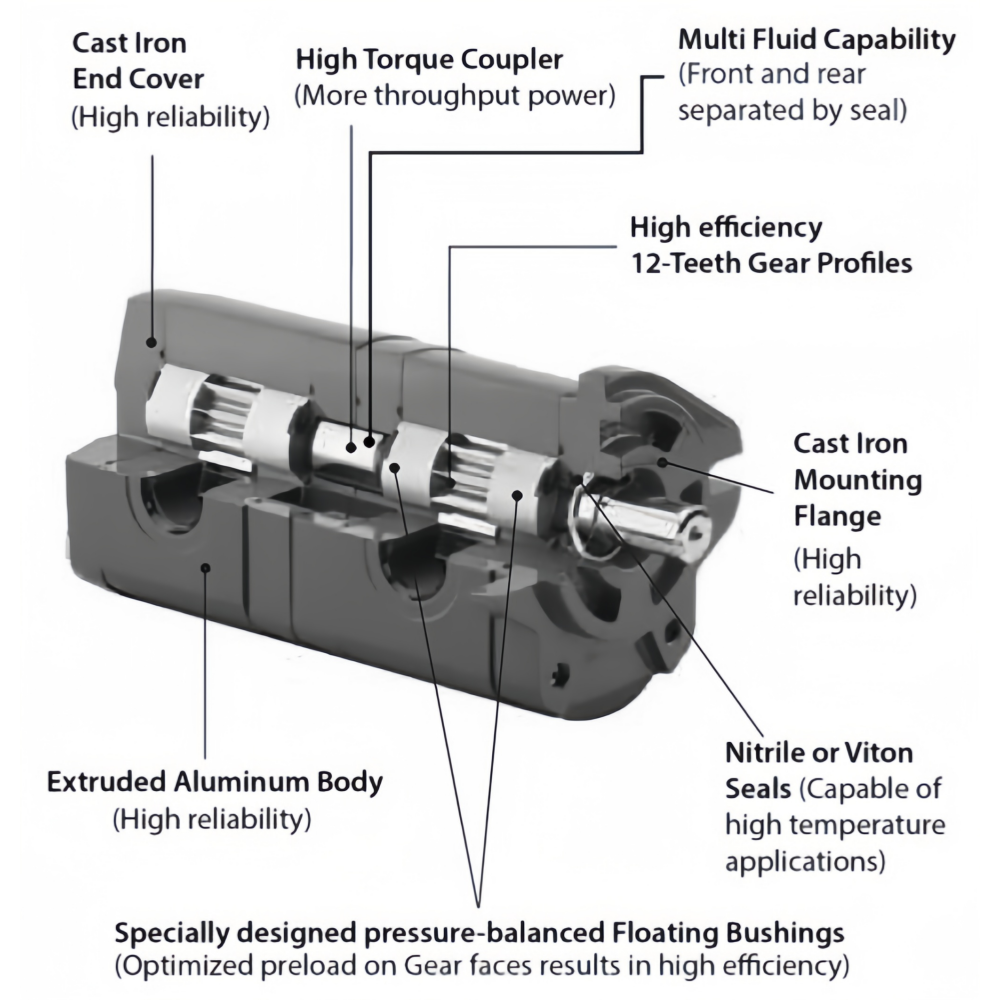

BENEFITS

Pressure balance floating bushing for optimized preload on gear faces resulting in better efficiencies.

Single and double pump configuration.

Tandem pumps are separated by seals which enables multi fluid capability.

Heavy-duty cast-iron front flange and end cover improves durability.

One piece shaft construction.

Thrust bearing for helical gear interface for AG tractors.

12 Teeth gear design with wide array of features for design flexibility and low-pressure ripples.

TECHNICAL DATAS

Frame size	Displacement cm³ [in³]	Max. continuous pressure bar [psi] ¹	Max. intermittent pressure bar [psi] ²	Min. speed rpm	Max. speed @ 210 bar rpm	Min. output flow @ 2,000 rpm at max. intermittent pressure l/min [US gal/min]
05	5.1 [0.31]	240 [3,480]	250 [3,625]	700	4,000	8.4 [2.22]
06	6.0 [0.37]	240 [3,480]	250 [3,625]	700	4,000	10.8 [2.85]
08	8.2 [0.50]	240 [3,480]	250 [3,625]	700	4,000	14.3 [3.78]
09	9.5 [0.58]	240 [3,480]	250 [3,625]	700	4,000	17.0 [4.49]
11	11.0 [0.67]	240 [3,480]	250 [3,625]	700	4,000	19.7 [5.20]
12	12.3 [0.75]	240 [3,480]	250 [3,625]	700	4,000	21.4 [5.65]
16	16.5 [1.01]	240 [3,480]	250 [3,625]	700	3,500	29.5 [7.79]
18	18.0 [1.10]	240 [3,480]	235 [3,408]	700	3,000	32.2 [8.51]
20	20.0 [1.22]	240 [3,480]	220 [3,190]	700	3,000	35.8 [9.46]
24	24.0 [1.46]	175 [2,538]	200 [2,900]	700	3,000	42.9 [11.33]

¹ Max. continuous pressure is for flanged ports. For threaded ports, max. continuous and intermittent pressure is 210 bar.

² Max. intermittent pressure only applicable for 10% of every minute.

APPLICATION

Harvesters

Machine Tools

Compactors

Sweepers

Rotary & Reel Mowers

Fan Drive Systems

Forestry attachments

MARKETS

Golf

Turf

Forestry

Landscaping

Agriculture

Construction

Earthmoving

Mining

Material Handling

Utility

Truck & Bus

Industrial
