Pressure-balanced design, ensuring sealing pressure adapts automatically to operating conditions for improved overall eciency and minimum energy losses.
Minimized internal friction and perfectly tted housing for an extended operating life.
Modular and short versions of multi-stage units for high exibil ity and compactness.
Teon coated bushings for extended life under extreme temperature and pressure conditions.
One piece gear shaft construction.
Broad range of shaft drives, integrated valves, and side or rear port options gives great exibility in system design.
Internal spline option for high pressure capability and highest power density.
Flex Program to ensure high customization in distribution.
Fan drive option from 8cc to 44cc with dust cover,fail safe function,integrated valve package (with various features available like proportional,and anti-cavitation)

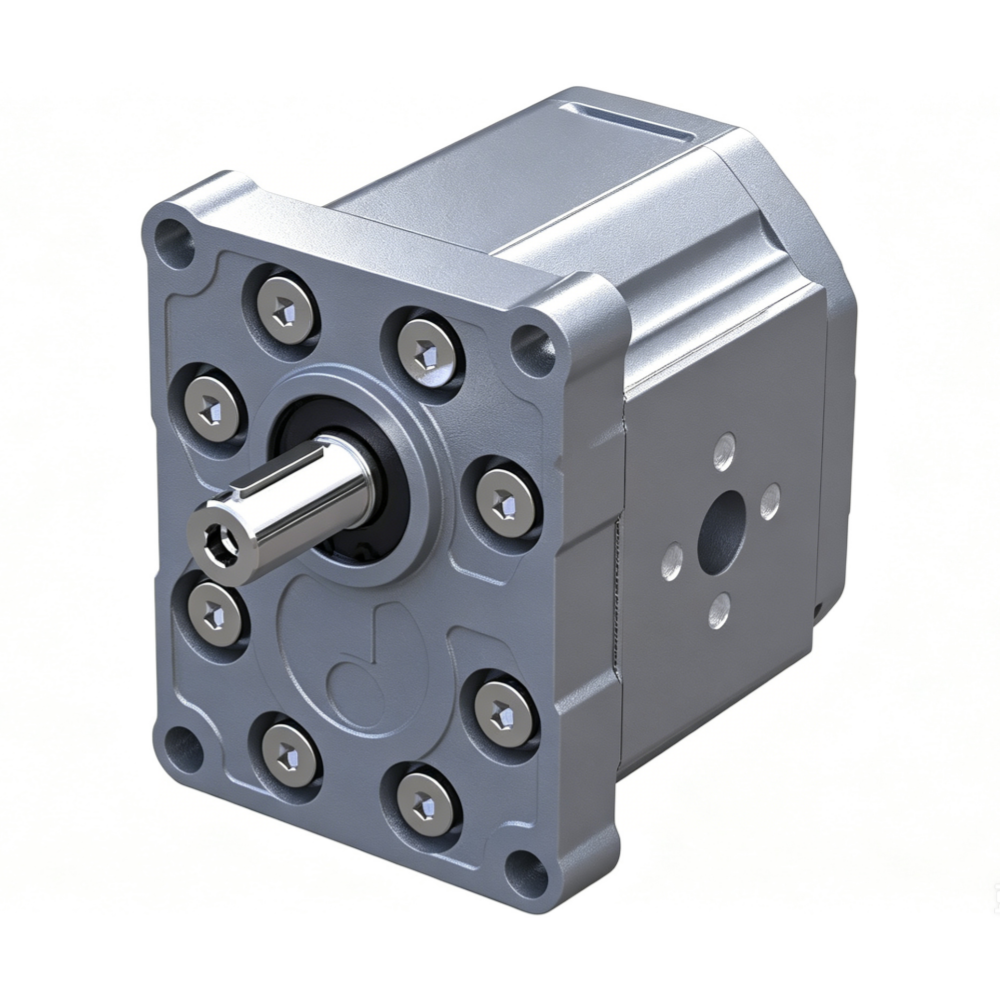

SNM3NN
SNM3NN is the Group 3 bidirectional motor available in the whole displacements range from 22 up to 90 cm3/rev [1 .35 up to 5.38 in3 /rev].
Configurations include European and SAE flanges and shafts (01BA, 01FA, 01DA, 02AA, 02FA, 02DB, 03BB,03FB, 06AA, 06DD, 07BC, 07GA, 07SA).
SNU3NN
SNU3NN is the Group 3 unidirectional motor available in the whole displacements range from 22 up to 90 cm3/rev [1 .35 up to 5.38 in3 /rev].
SNU3NN motor construction is derived from the correspondent pump SNP3 .
Configurations include European and SAE flanges and shafts (01BA, 01FA, 01DA, 02AA, 02FA, 02DB, 03BB,03FB, 03DB, 06AA, 06SA, 07BC, 07GA, 07SA).

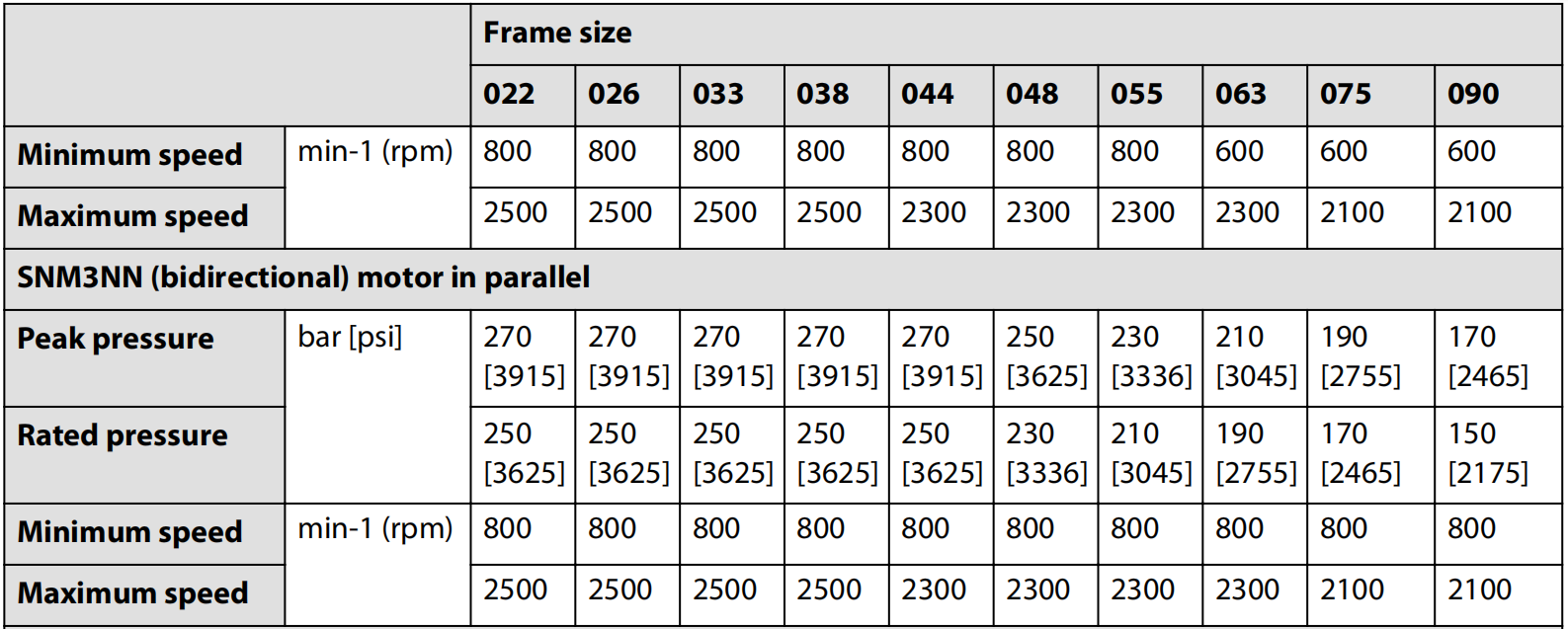

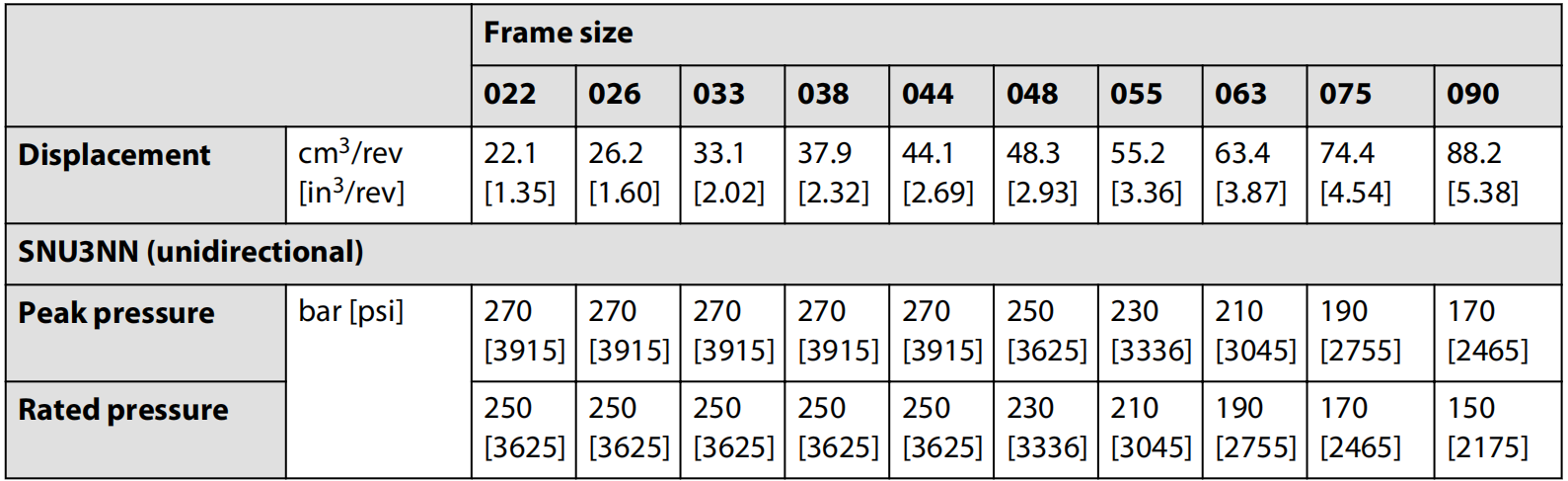

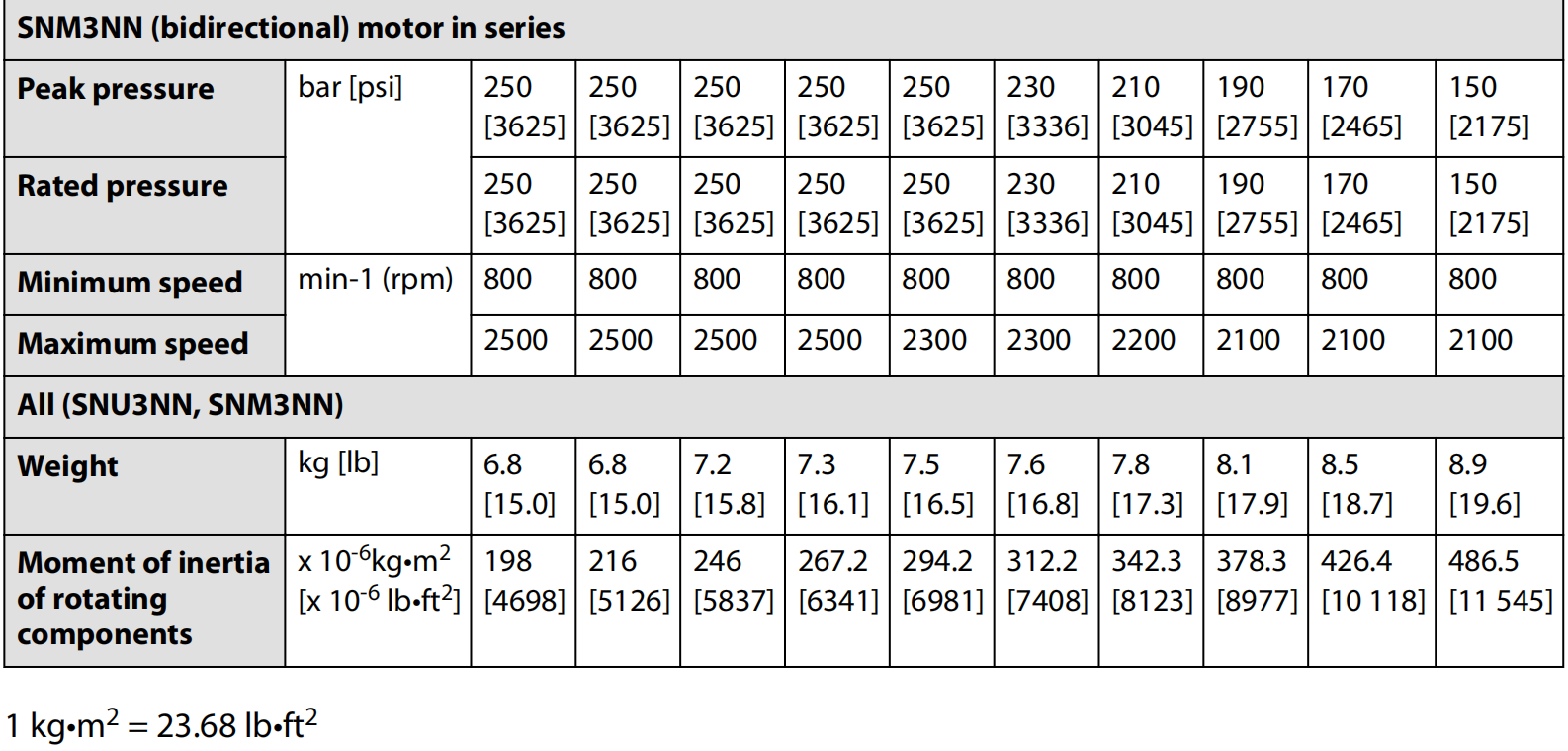

Technical Datas
Applications
Tractors
Harvesters
Wheel Loaders
Backhoe loaders / Excavators
Telehandlers
Machine Tools
Rollers / Sweepers
Fan Drive Systems
Forklifts
Aerial lifts
Forestry attachments
Markets
Construction
Agriculture
Earthmoving
Mining
Material Handling
Utility
Trucks & Bus
Forestry
Distribution
