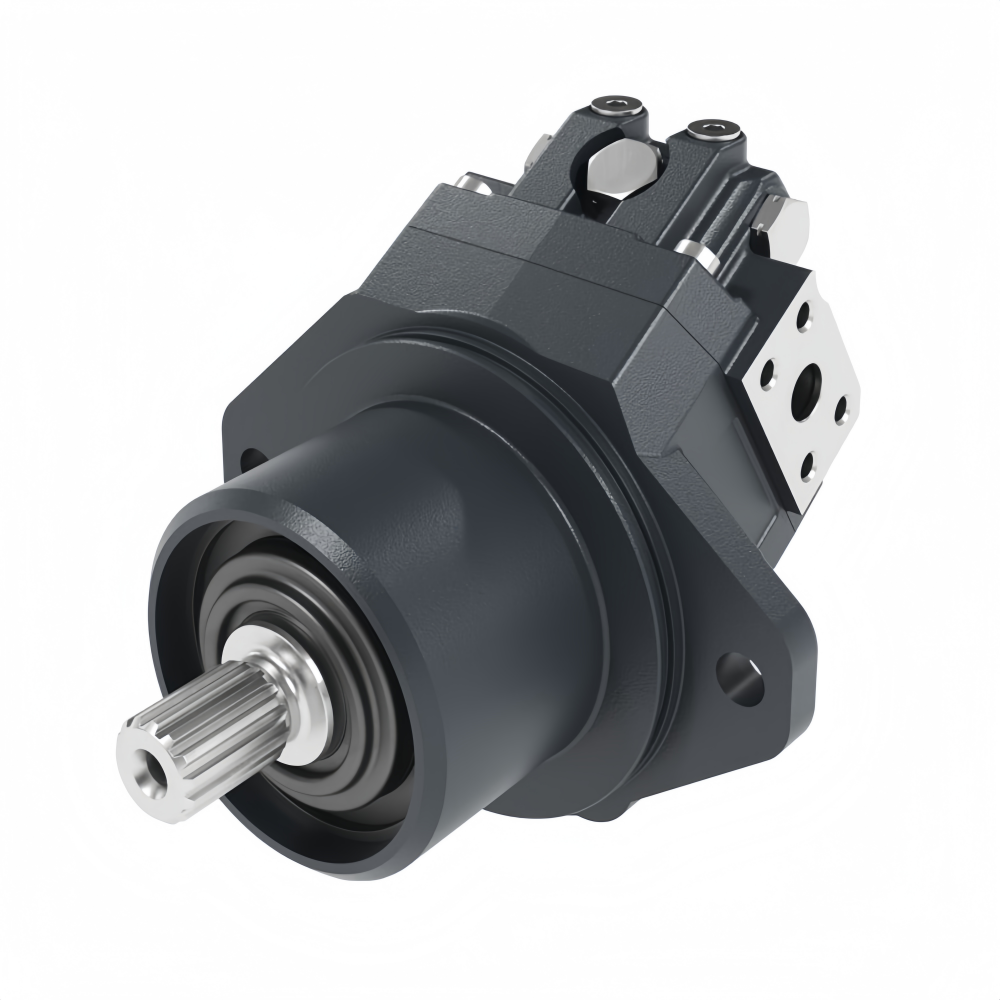

No.H1F 060 cm³/rev.
Series H1F fixed displacement motors are bent axis design,incorporating spherical pistons.
These motors are designed to be combined with other products in closed or open circuit systems to transfer hydraulic power.
High performing 32 degree maximum angle,creates opportunities to easily improve the machine performance for:
- Multi-motor applications requiring optimized work and transport modes (i.e.wheel loader,mobile crane,drill rigs,winches,harvestors).
- SAE,Cartridge and DIN flange with axial,side or twin high pressure port configurations are available.
- Loop flushing is also available with these options.
- Speed sensor options are available to cover all frame sizes and flange styles.
