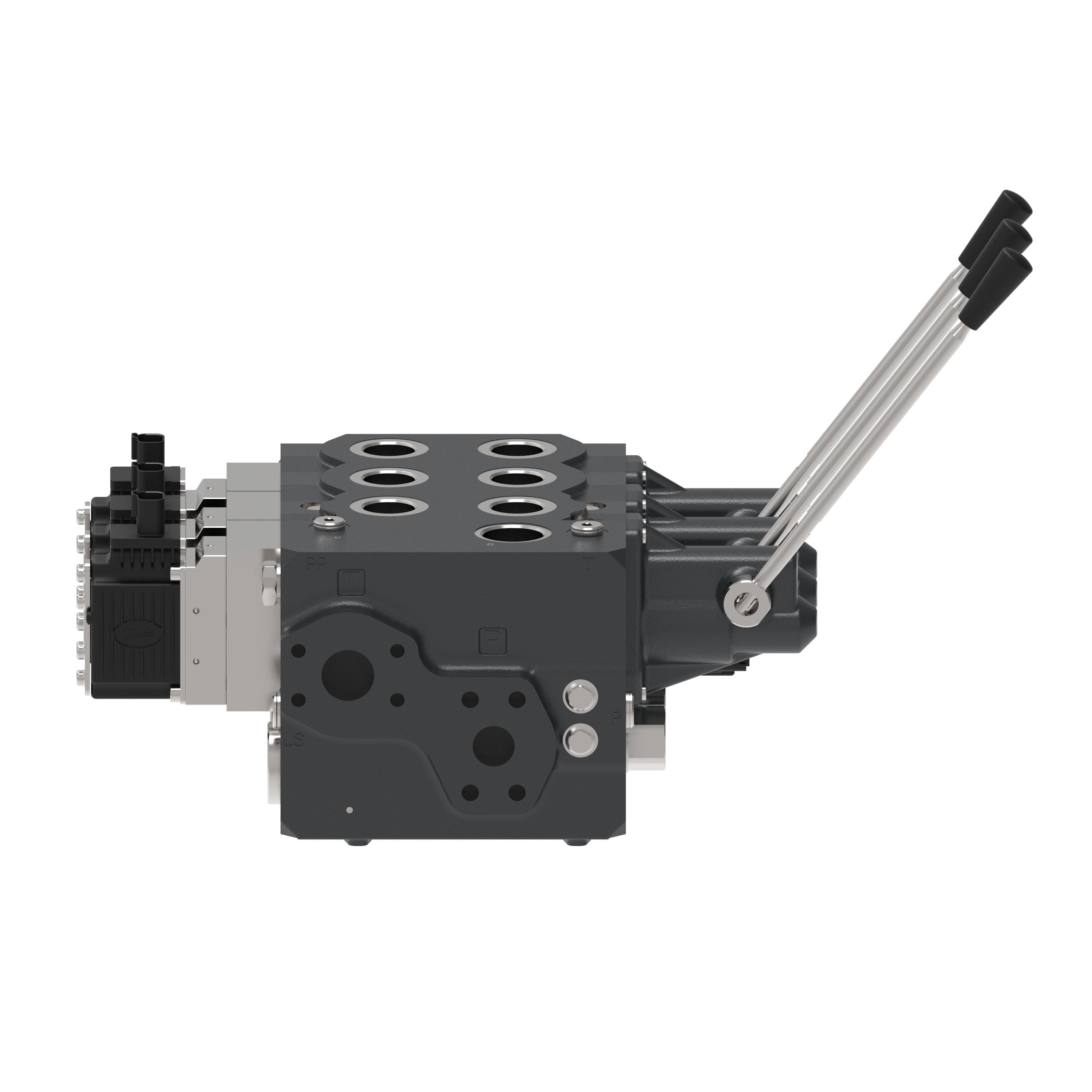

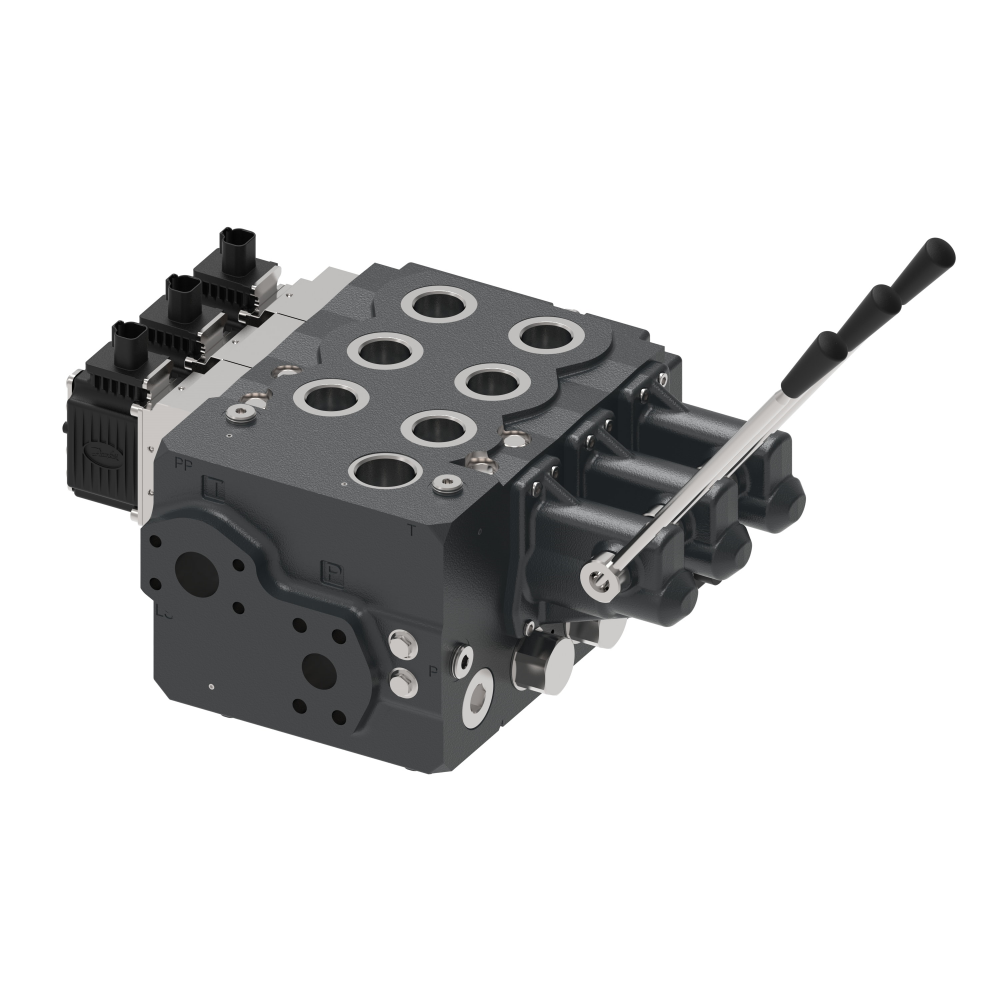

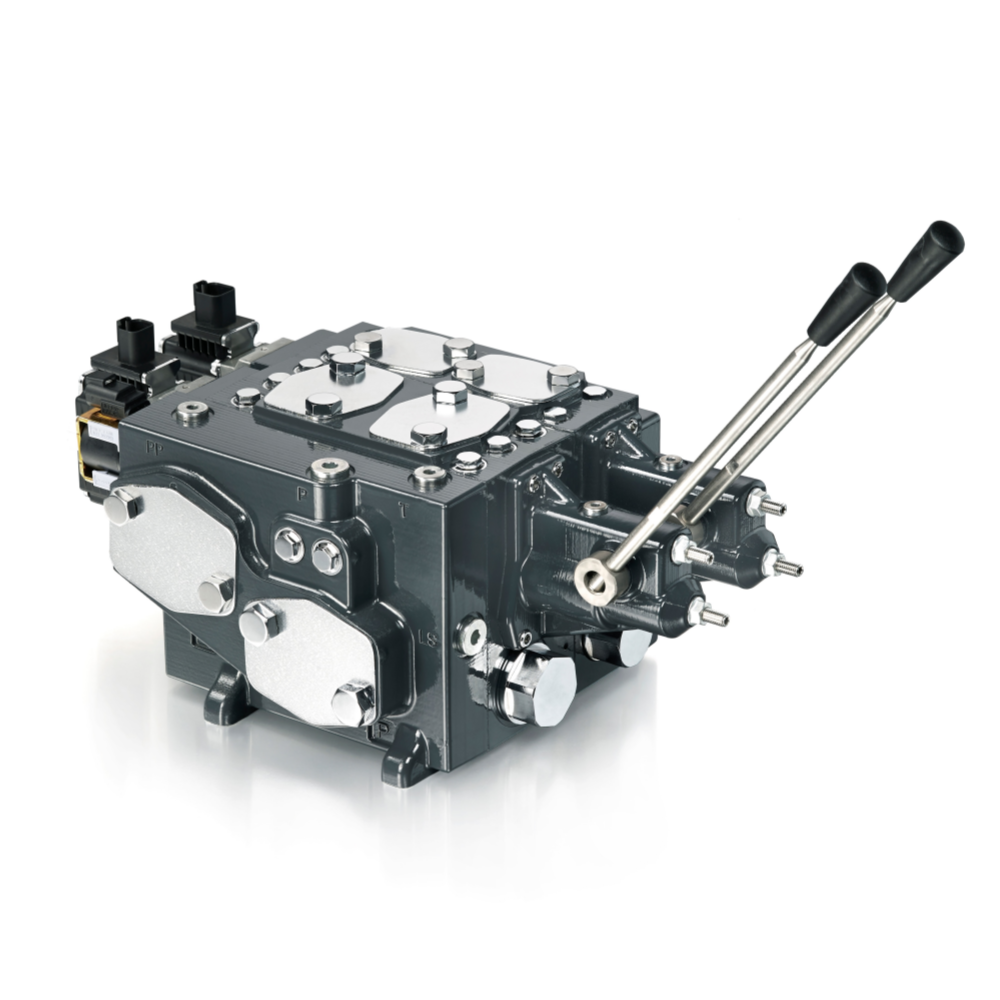

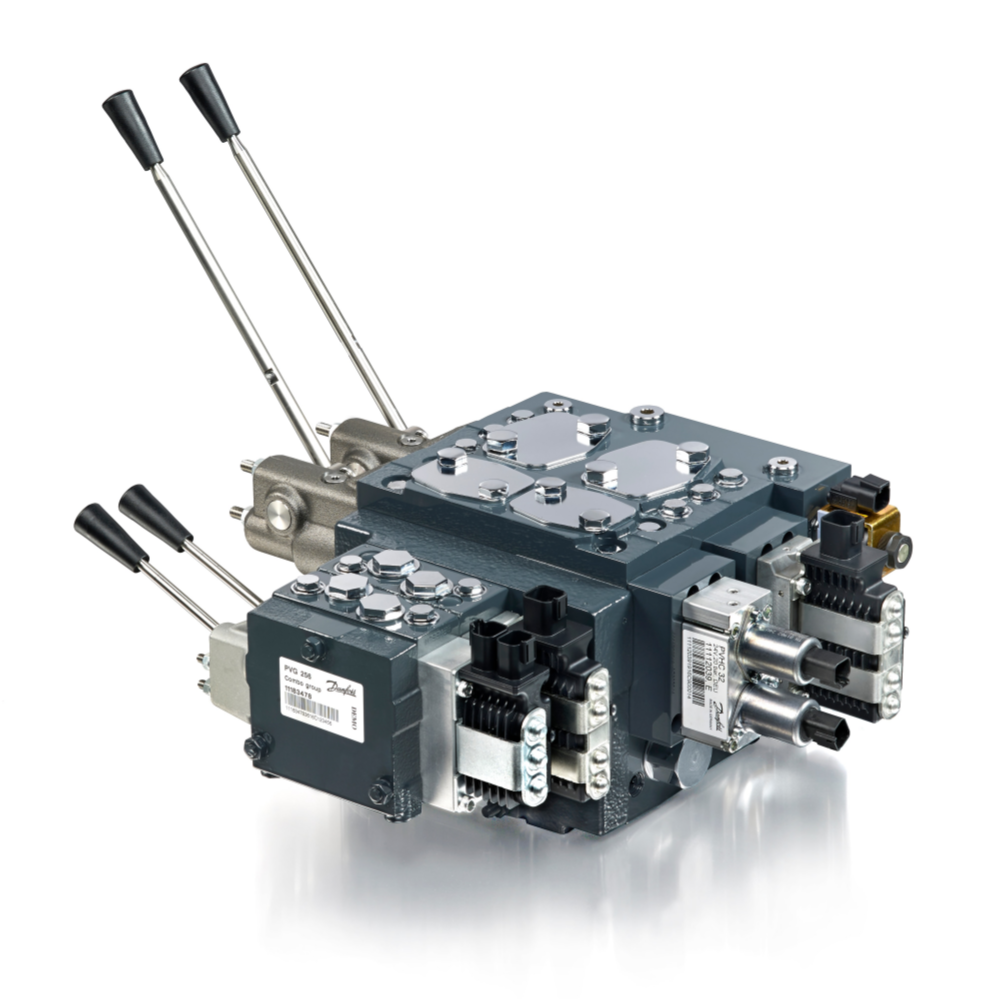

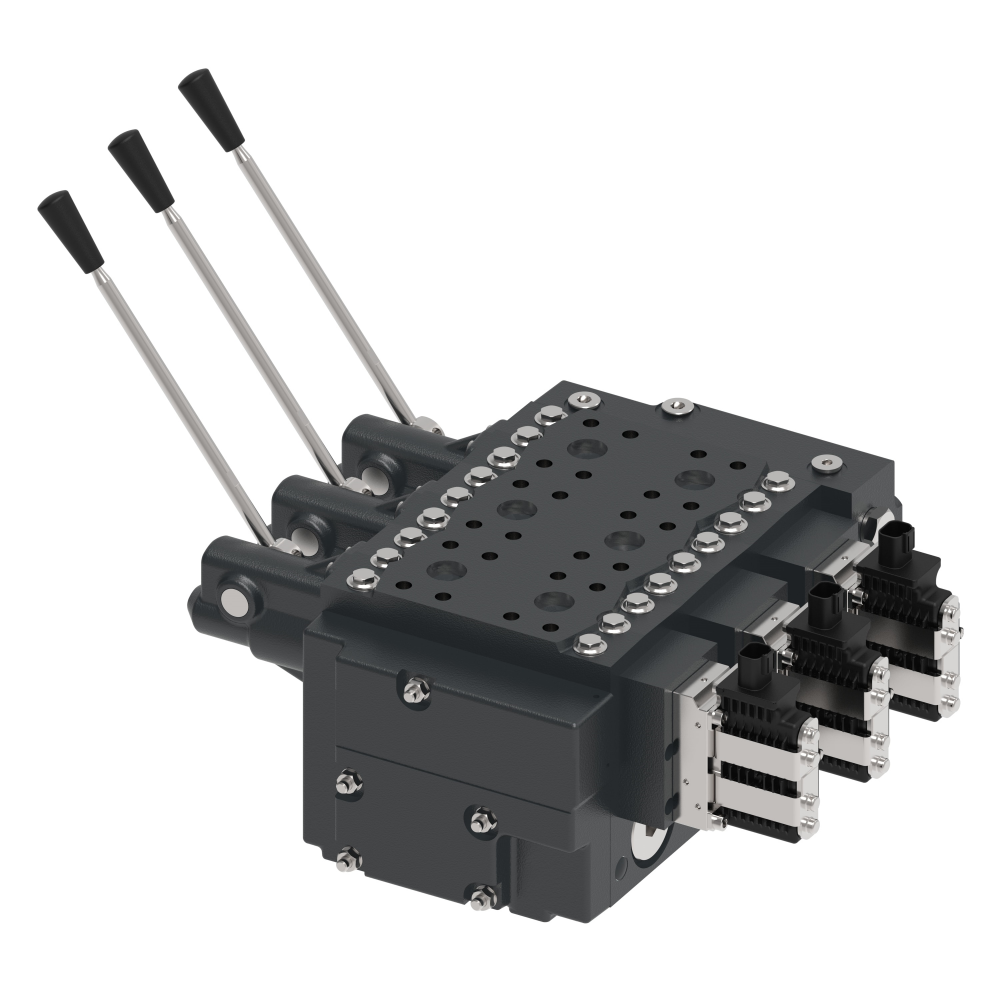

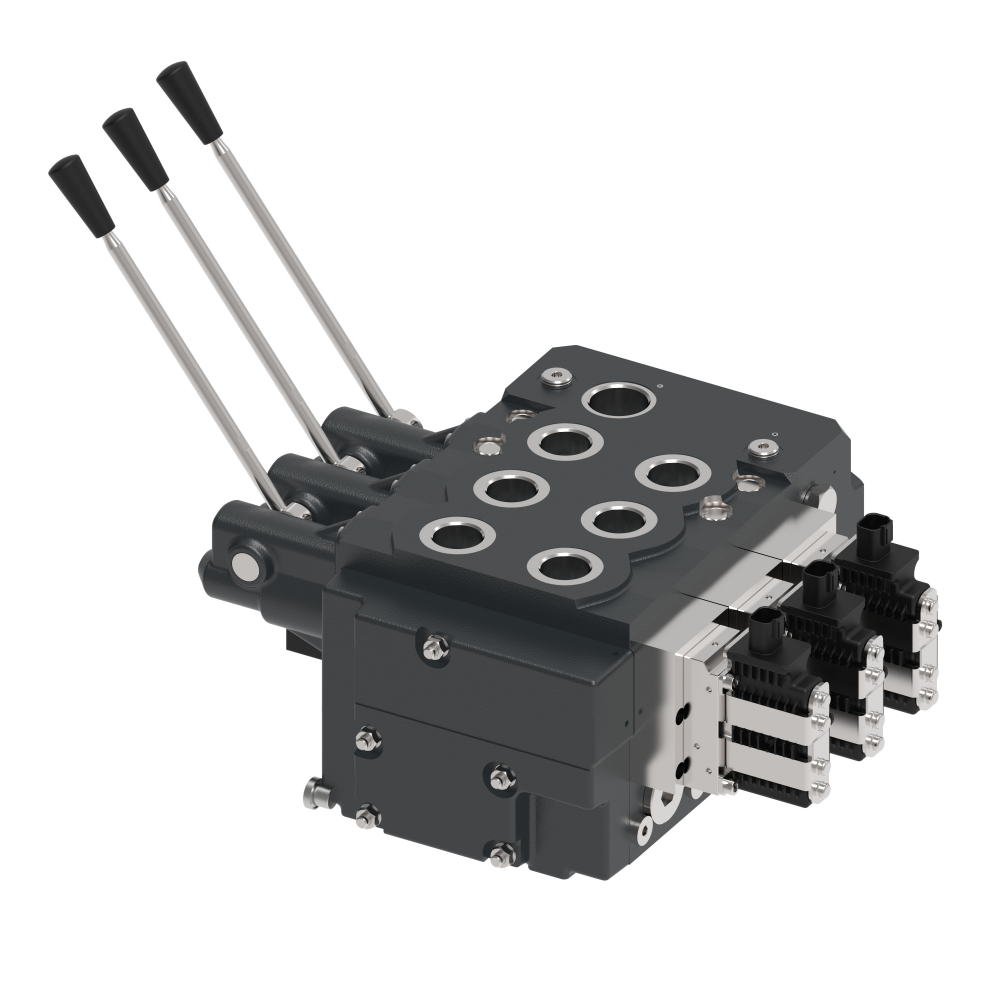

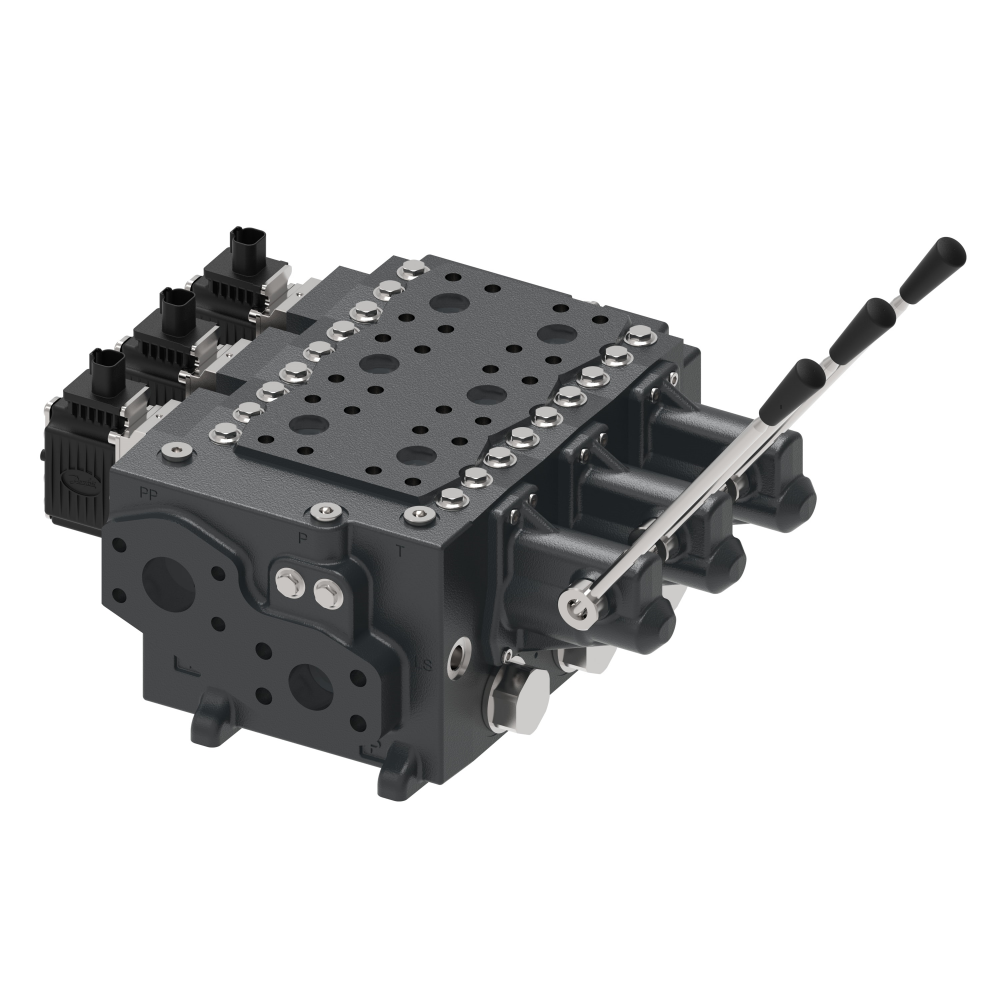

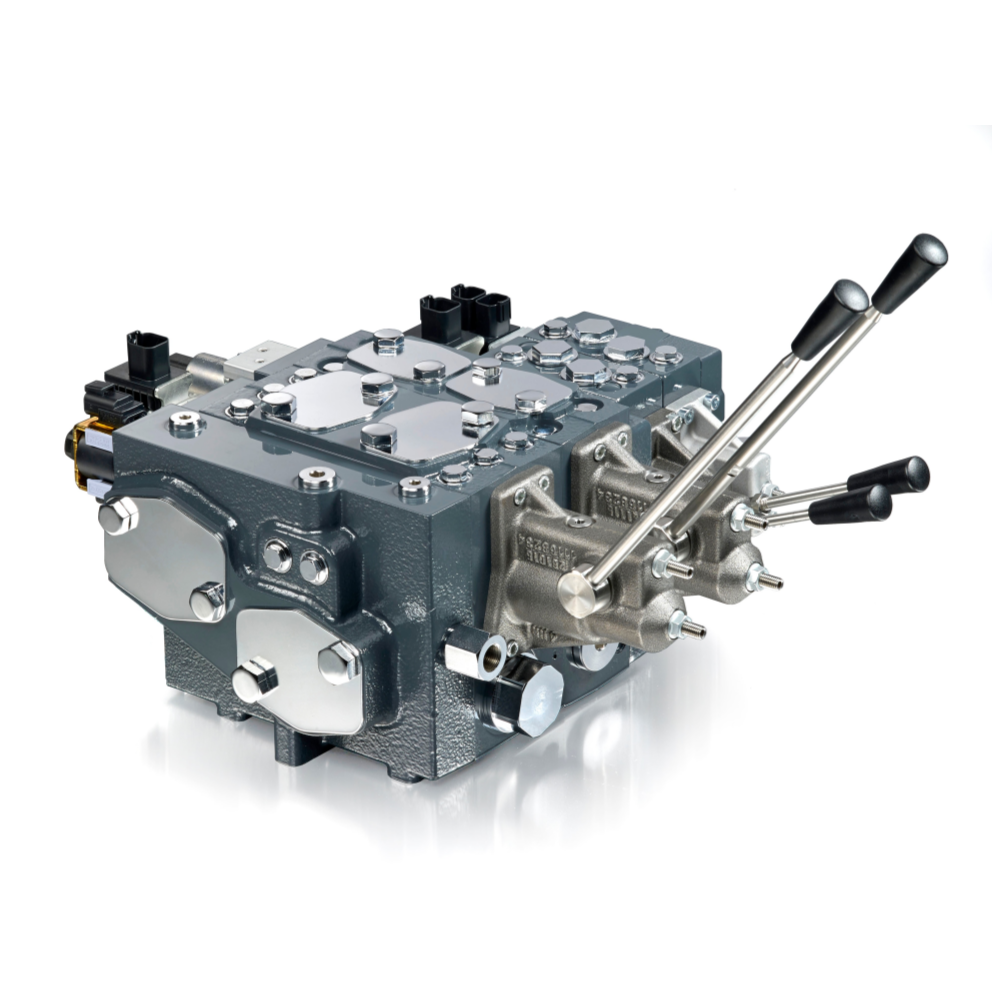

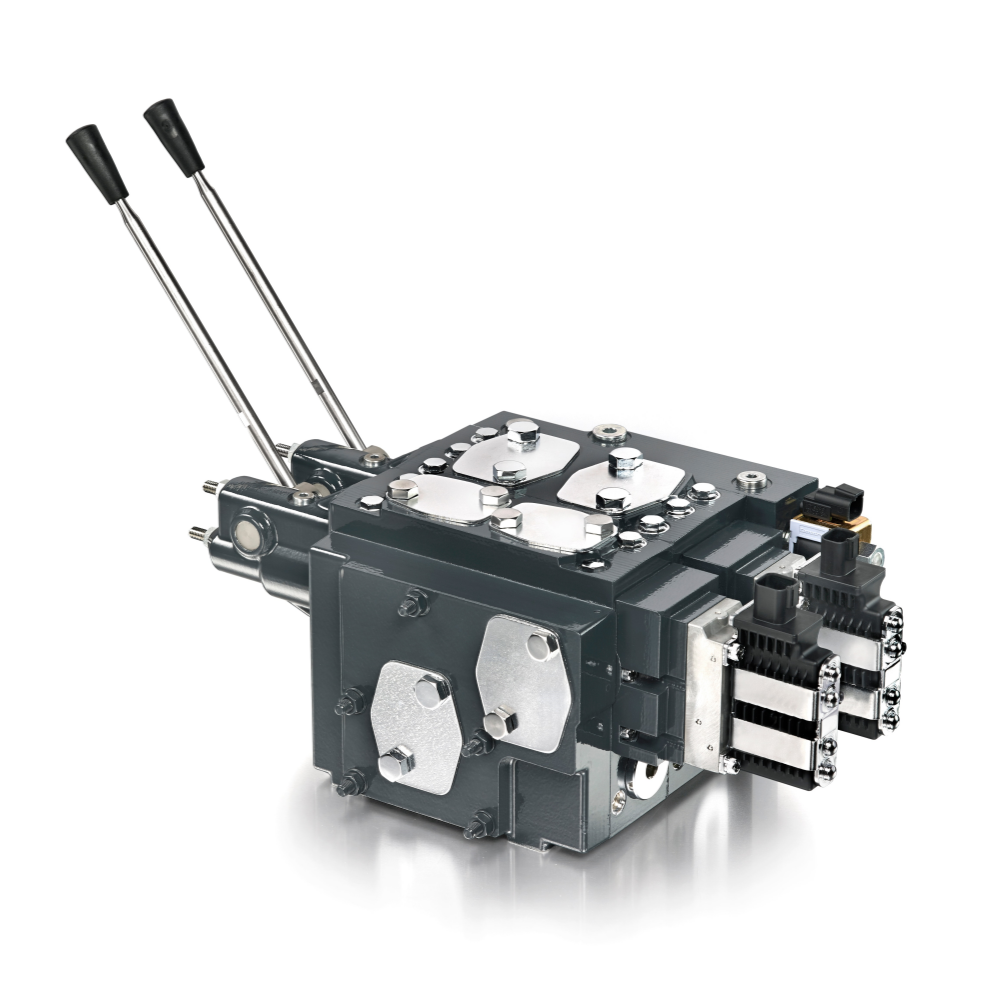

Features of PVG 128/256 Valve
- Inlet flow up to 1200 l/min [317 US gal/min].
- Compact sectional platform solution for easy integration with PVG 16/32/48.
- Load-independent flow control:
‒ Oil flow to an individual function is independent of the load pressure of this function.
‒ Oil flow to one function is independent of the load pressure of other functions.
- Reliable regulation characteristics across the entire flow range.
- Load sense relief valves for A and B port enables reduced energy loss at target pressure.
- Optimized for lower pressure drop and higher efficiency.
- Several options for connection threads and flange mount.
- Compact design, easy installation and serviceability.
- Static Load sense system when selecting pump control.
- Internal T0 connection in all PVSI/PVGI.
Spool/Flow Options
- Closed or Throttled open in neutral position.
- Electrical, mechanical or hydraulic actuation.
- 65, 95, 130, 180, 240, 320, 400.
- 500 l/min with turbo upgrade module.
Control Options

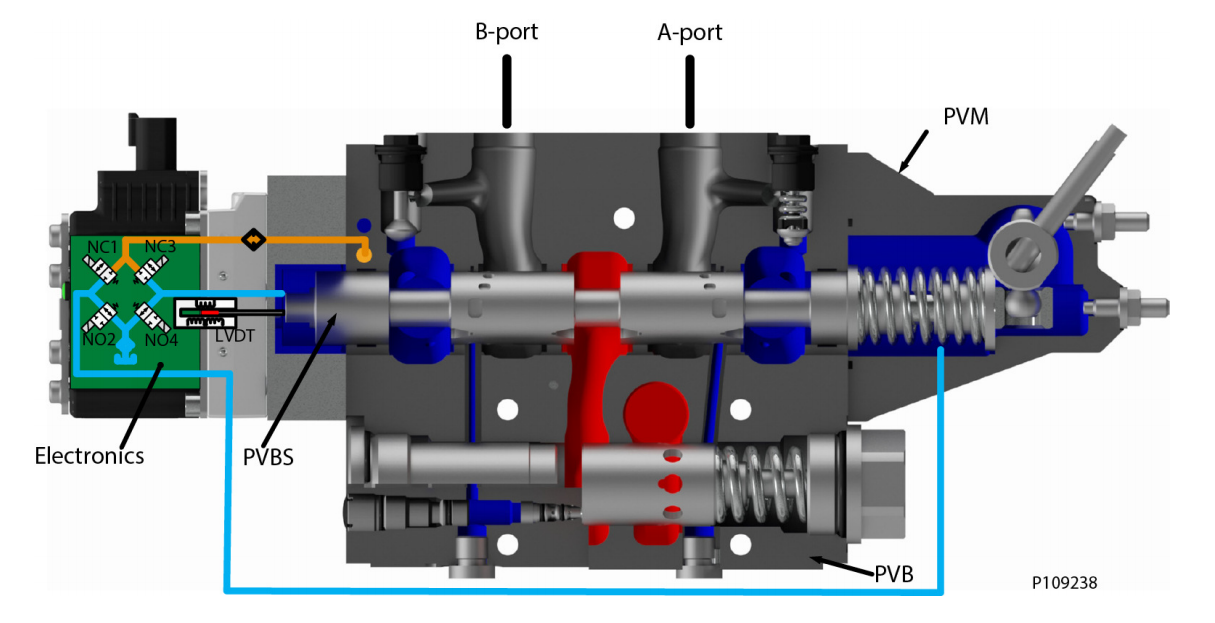

- PVM, manual control with spool limiting adjustment screws.
- PVH for hydraulic actuation.
- Electro-hydraulic control options with PVEO, PVEH, PVHC, PVEH-U and PVED actuators.
System/Application Protective Features
• Pilot Pressure Shut Off.
