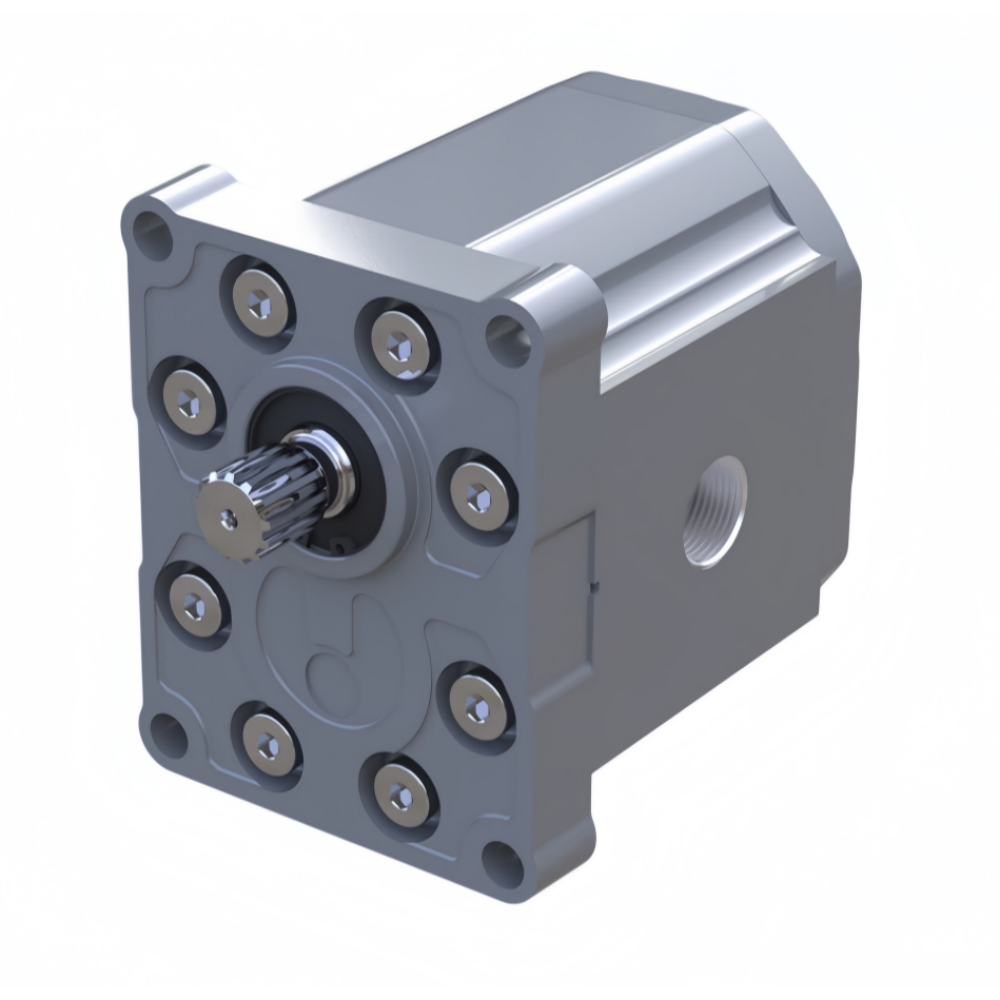

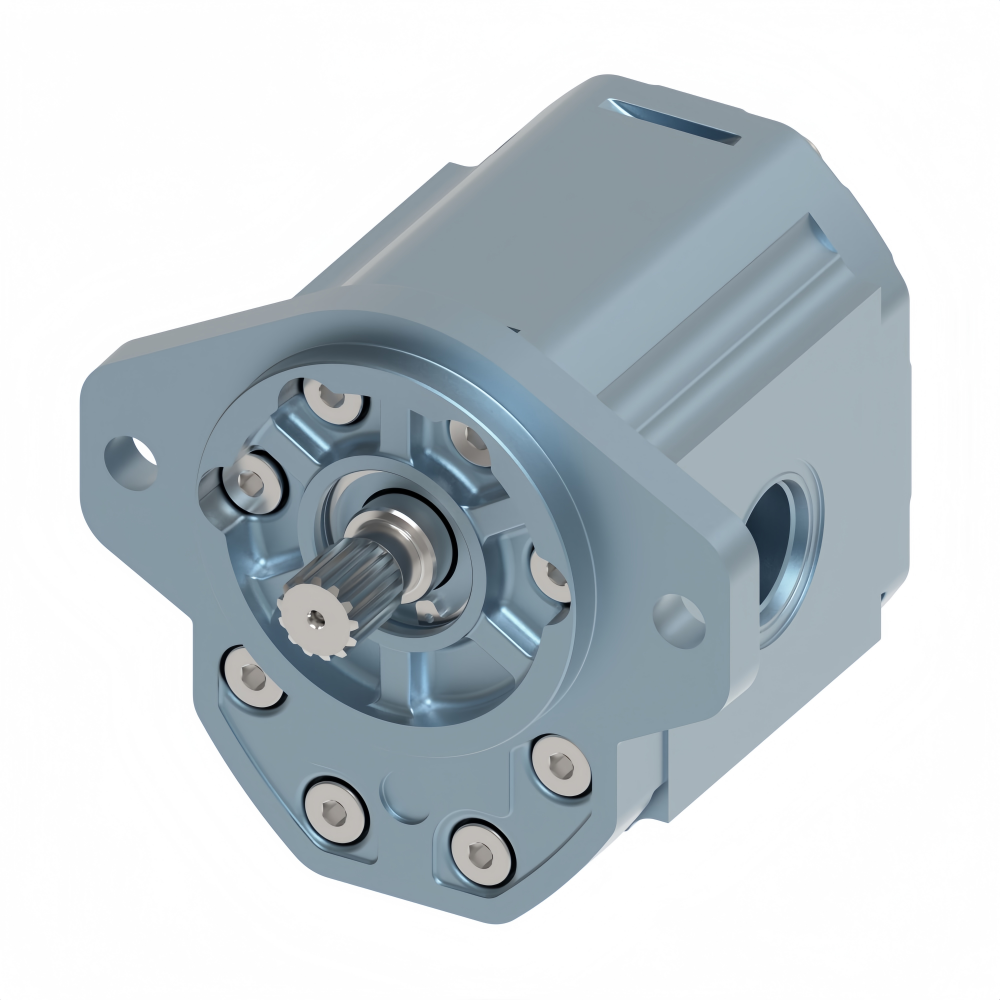

The Danfoss Group 3 is a range of peak performance fixed-displacement gear pumps. Constructed of a high-strength extruded aluminum body with aluminum cover and flange, all pumps are pressure-balanced for exceptional efficiency.
The pump setups provide oil separation and can support up to five stages depending on torque requirements.
Many combinations of the pumps mentioned are available as multiple units made to fit any needs.
Danfoss provides standard pumps for use in industrial applications, including power packs.
The pump setups provide oil separation and can support up to five stages depending on torque requirements.
Danfoss high performance gear pumps are fixed displacement pumps which consist of the pump housing, drive gear, driven gear, DU bushings, rear cover and front flange, shaft seal and inner/ outer seals, as shown in the following image.
The pressure balanced design of the pumps provides high efficiency for the entire series.

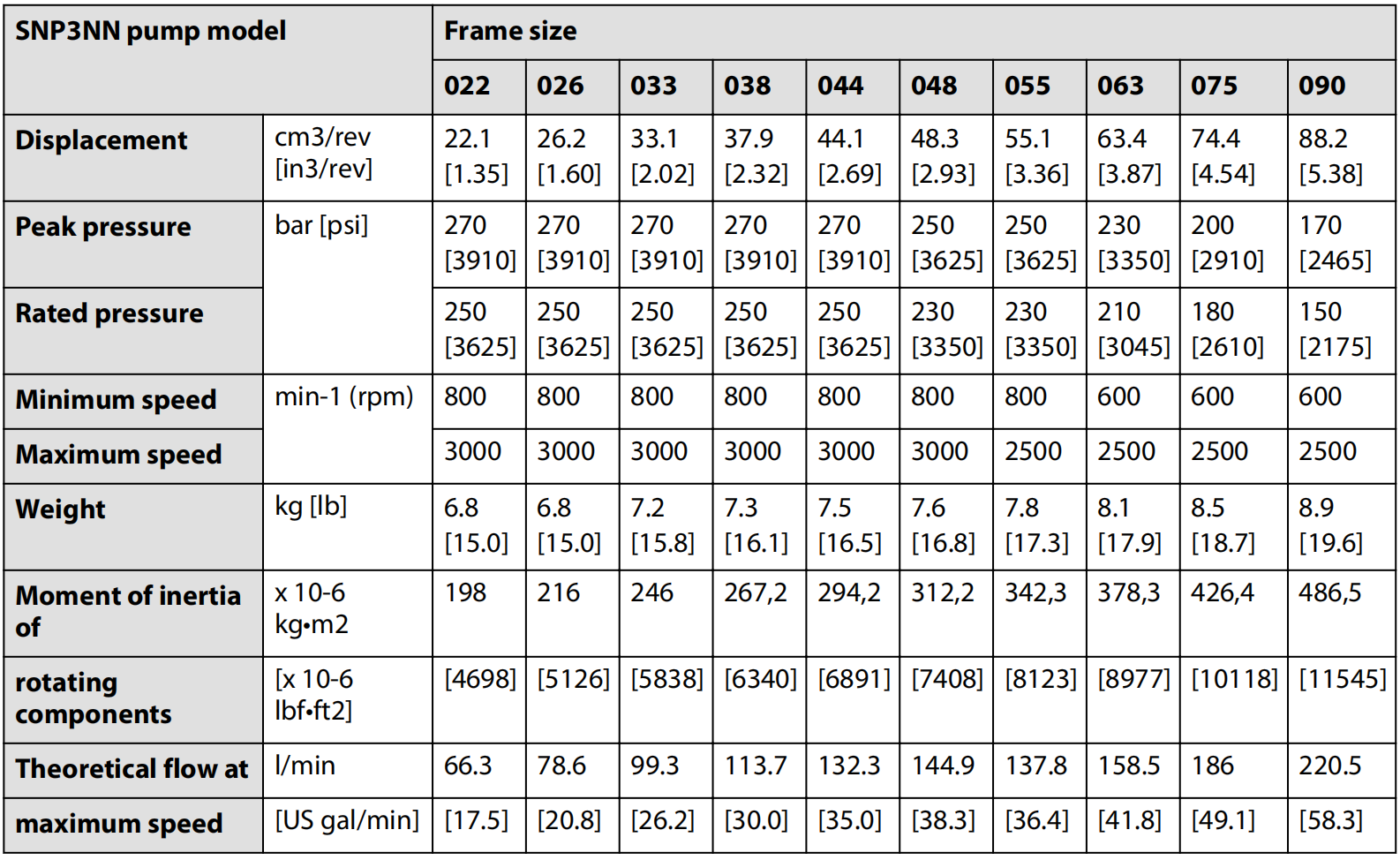

Wide range of displacements from 22 to 90 cm3 /rev [from 1.34 to 5.49 in3 /rev]
Continuous pressure rating up to 250 bar [3625 psi]
Speeds up to 3000 min-1 (rpm)
SAE, DIN and European standard mounting flanges
High quality case hardened steel gears

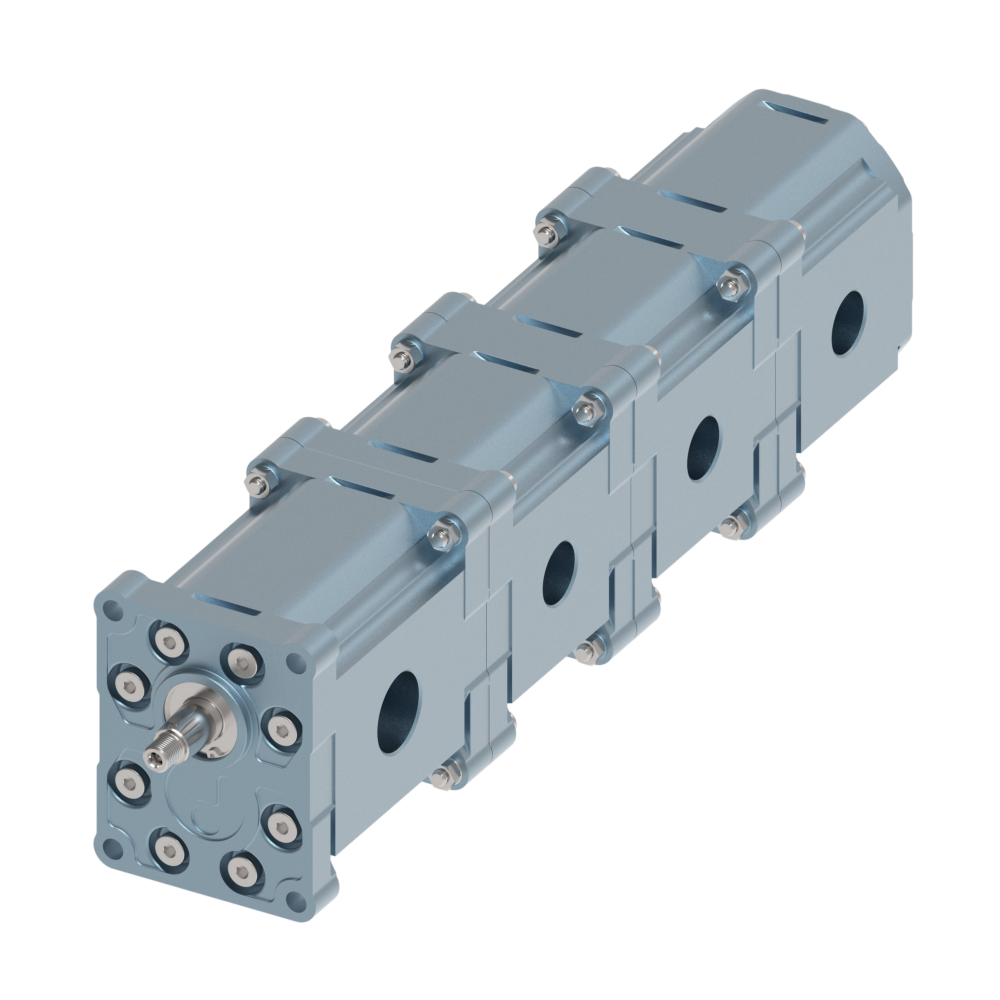

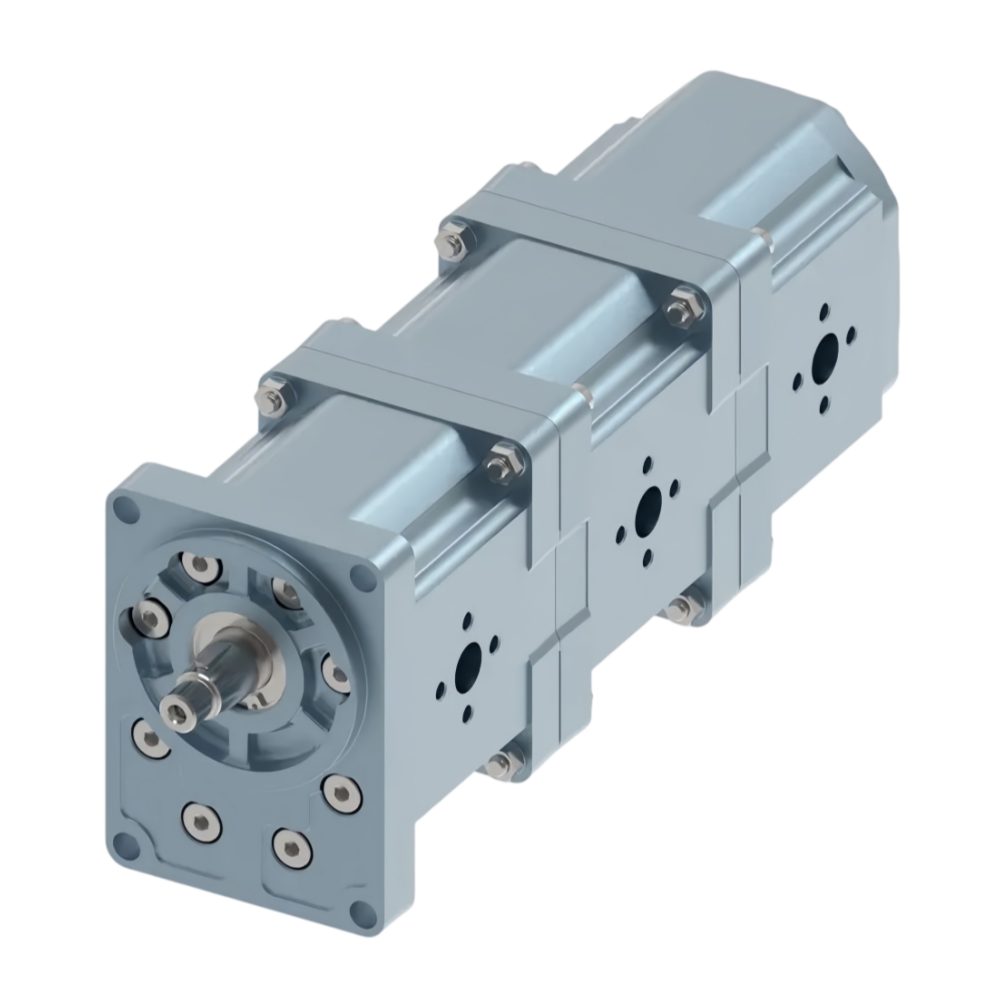

Multiple pump configurations in combination with SNP1NN, SNP2NN and SNP3NN
