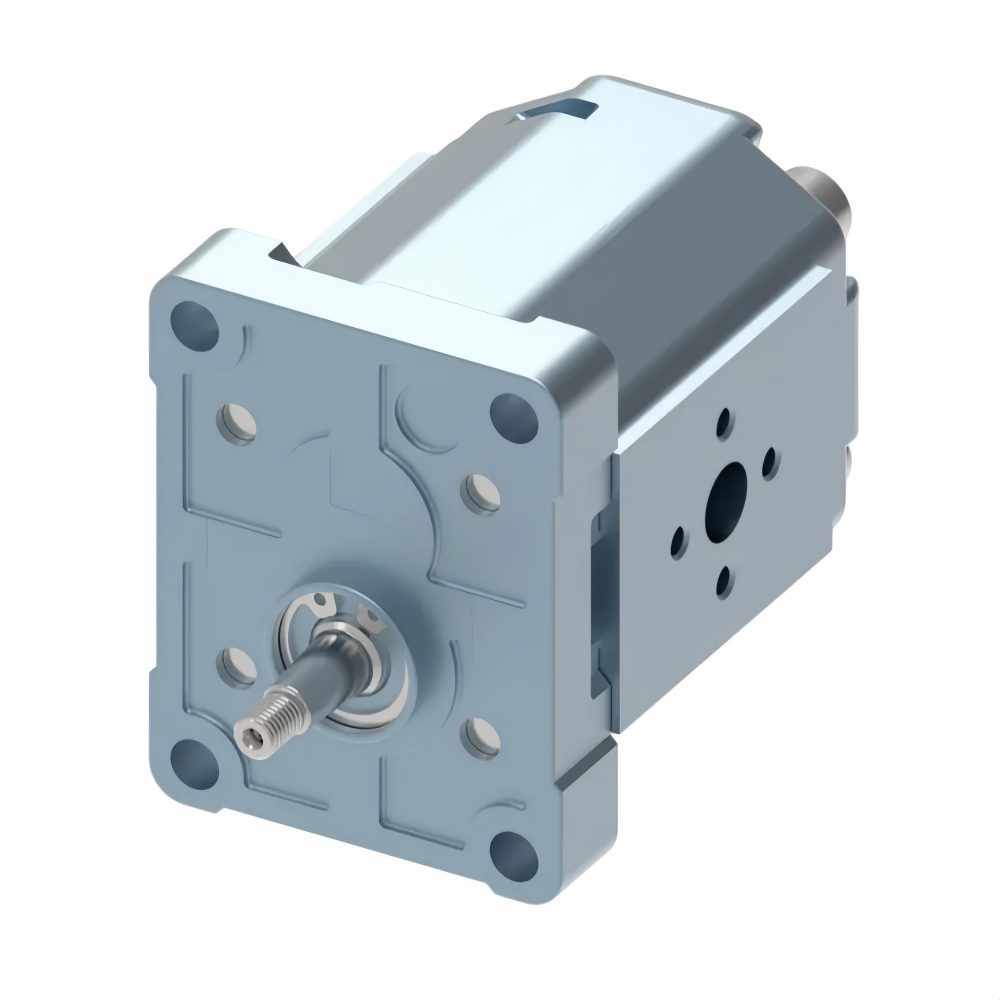

Danfoss Aluminum SNP1NN / SKP1NN Group 1 GearMe Pump

No.SNP1NN / SKP1NN

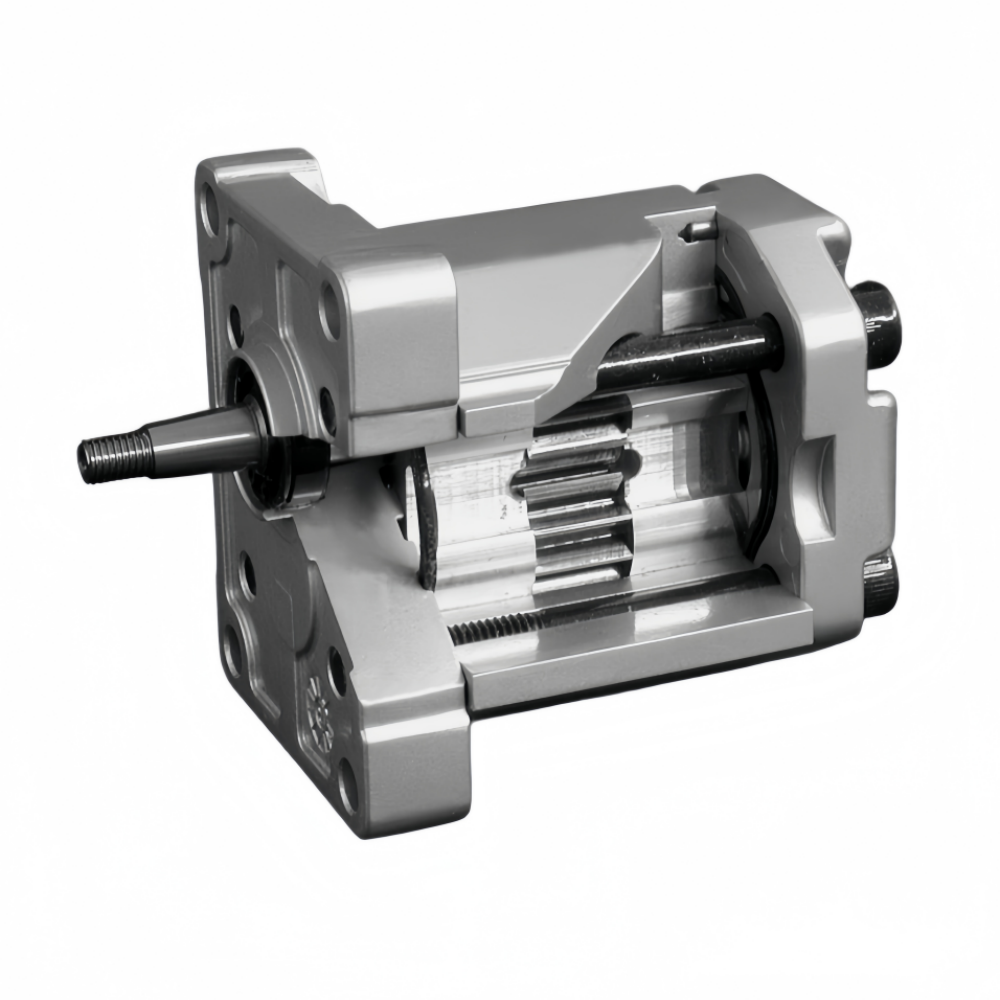

The Danfoss Group 1 is a range of peak performance fixed-displacement gear pumps.
Constructed of a high strength extruded aluminum body with aluminum cover and flange, all pumps are pressure-balanced for exceptional efficiency.
The flexibility of the range,combined with high efficiency and low noise,makes the pumps in this series ideal for a wide range of applications,including: turf care,aerial lifts, material handling,and power packs.

Variations

Edit selections

Displacement: 1.18 cm3 /rev

1.18 cm3 /rev

1.57 cm3 /rev

2.09 cm3 /rev

2.62 cm3 /rev

3.14 cm3 /rev

3.66 cm3 /rev

4.19 cm3 /rev

5.89 cm3 /rev

7.59 cm3 /rev

9.94 cm3 /rev

12 cm3 /rev

Select variations and quantity

Displacement: 1.18 cm3 /rev

The min. inquiry quantity is 0. Add 0 more to continue.

1.18 cm3 /rev

1.57 cm3 /rev

2.09 cm3 /rev

2.62 cm3 /rev

3.14 cm3 /rev

3.66 cm3 /rev

4.19 cm3 /rev

5.89 cm3 /rev

7.59 cm3 /rev

9.94 cm3 /rev

12 cm3 /rev

Subtotal

GET A QUOTE

Download

View all downloads

SKP1NN

SKP1NN has a larger diameter shaft than the SNP1NN.
It spans the complete displacement range at higher pressures than the SNP1IN and the SNP1NN.
Configurations include European and SAE flanges and shafts ( code 02BB, 02FA, 06SA, and 06GA ).

SKP1IN AND SNP1IN

Danfoss offers an optional integral relief valve integrated in the rear cover.
It is drained internally and directs all flow from the pump outlet to the inlet when the outlet pressure reaches the valve setting.
SNI1 pumps only include European flange and shaft configurations (code 01BA, 01DA, and 03CA).

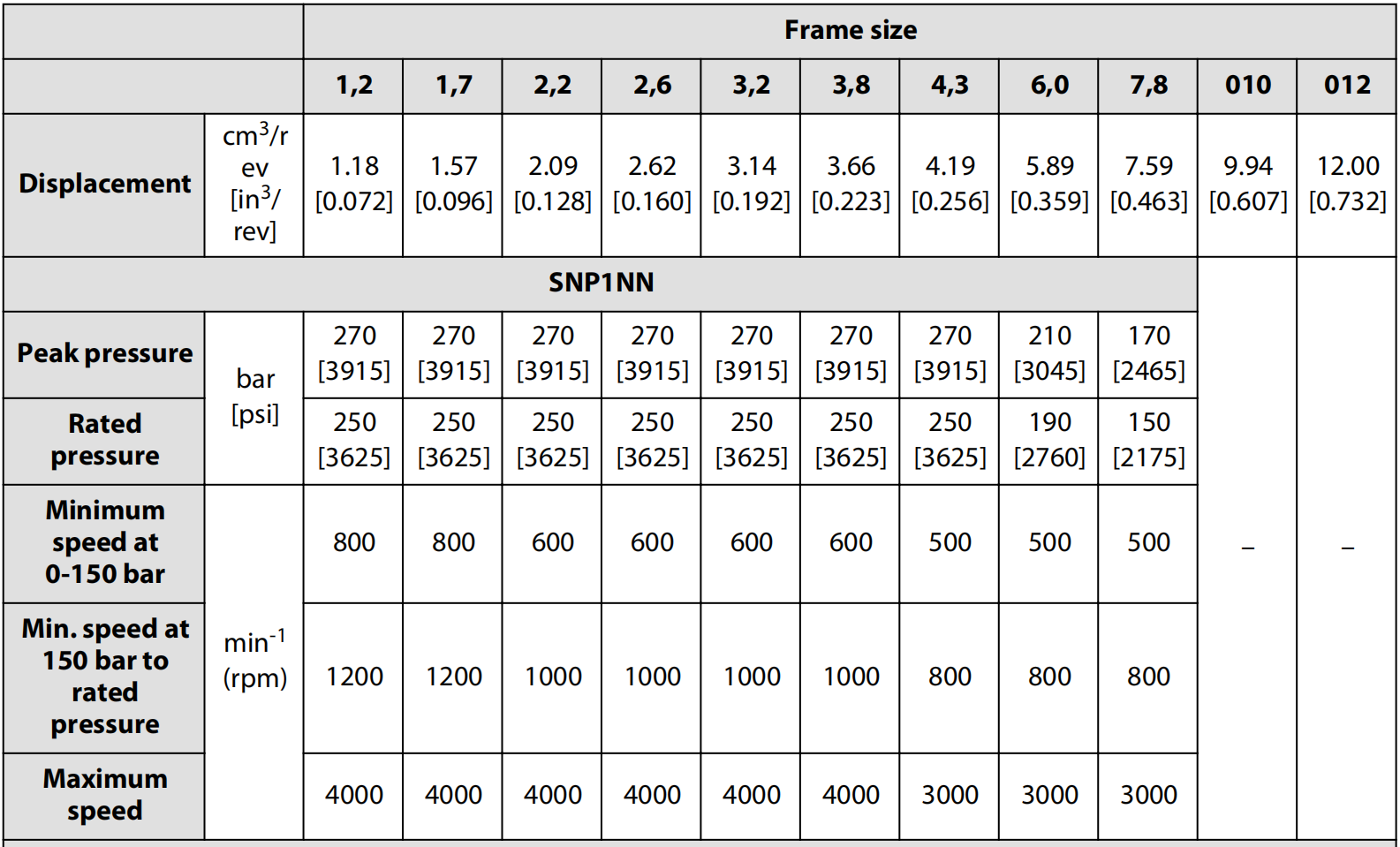

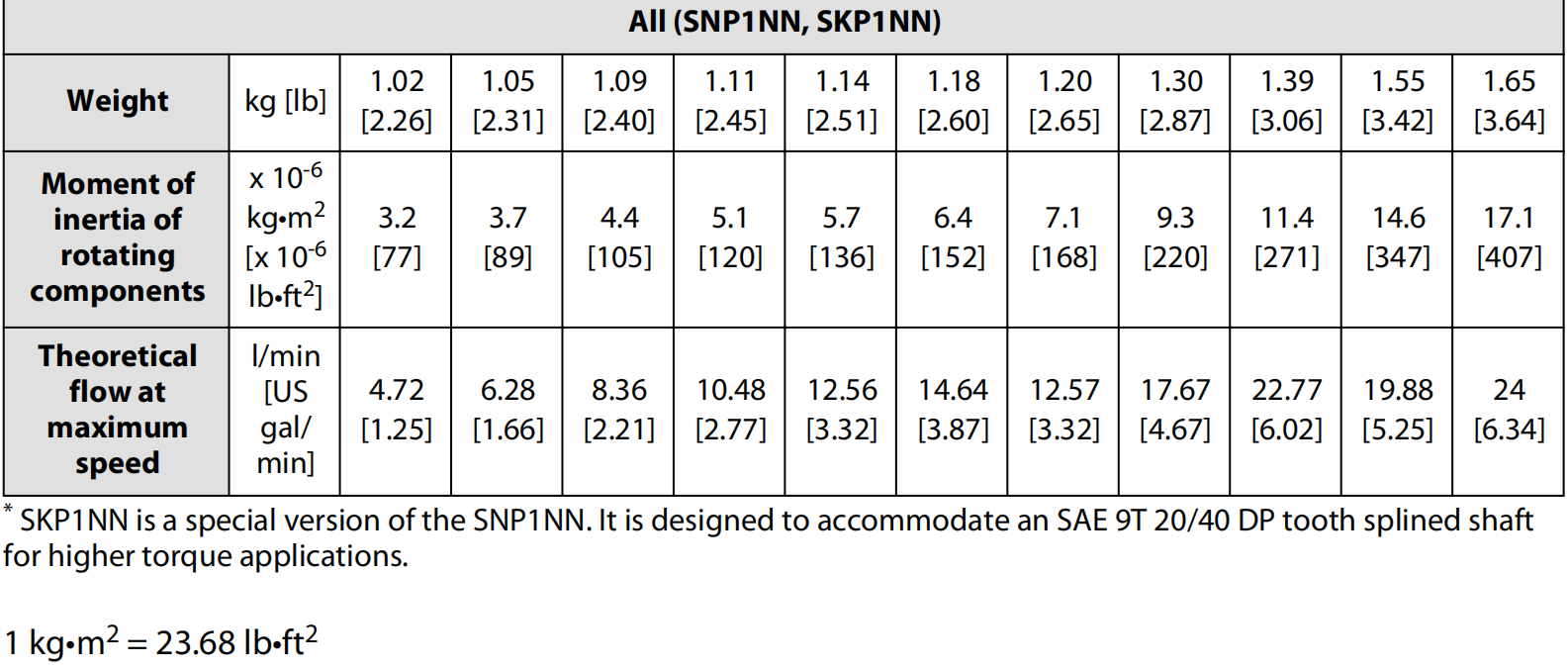

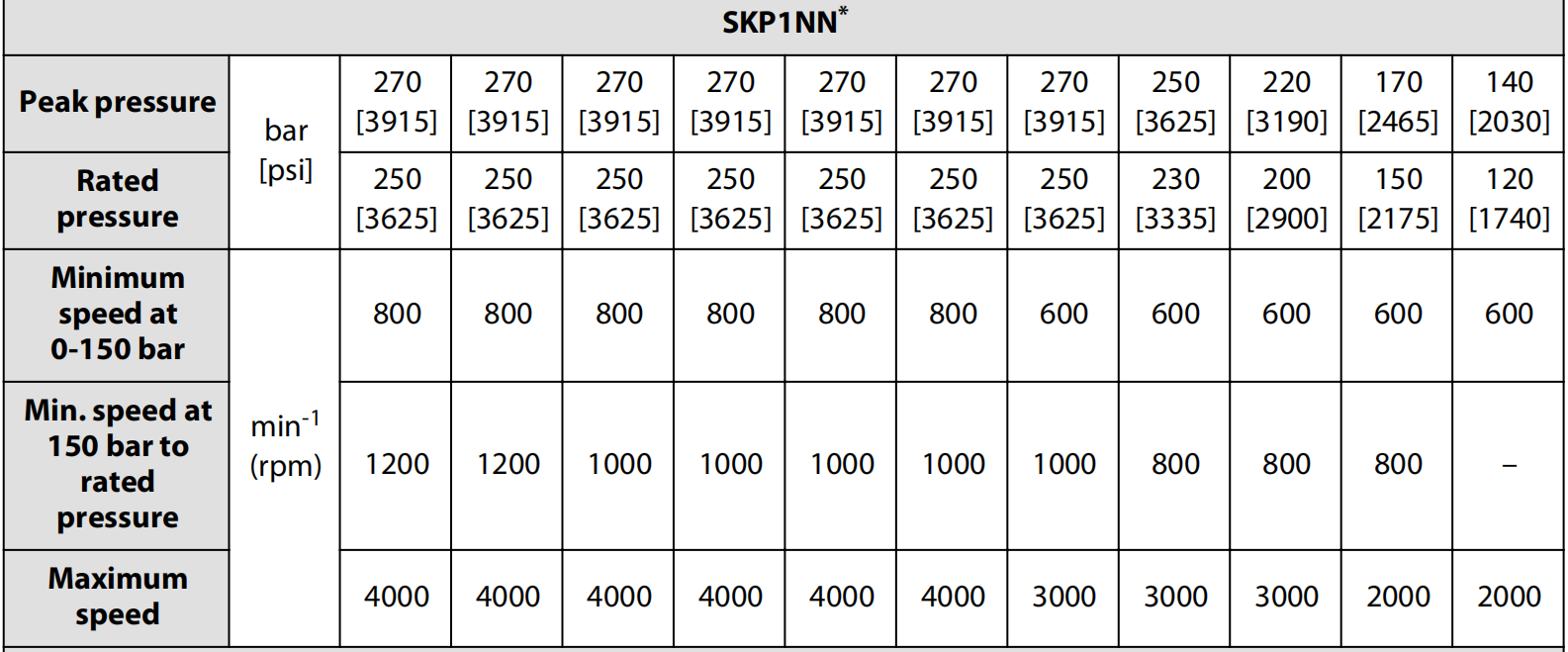

TECHNICAL DATAS

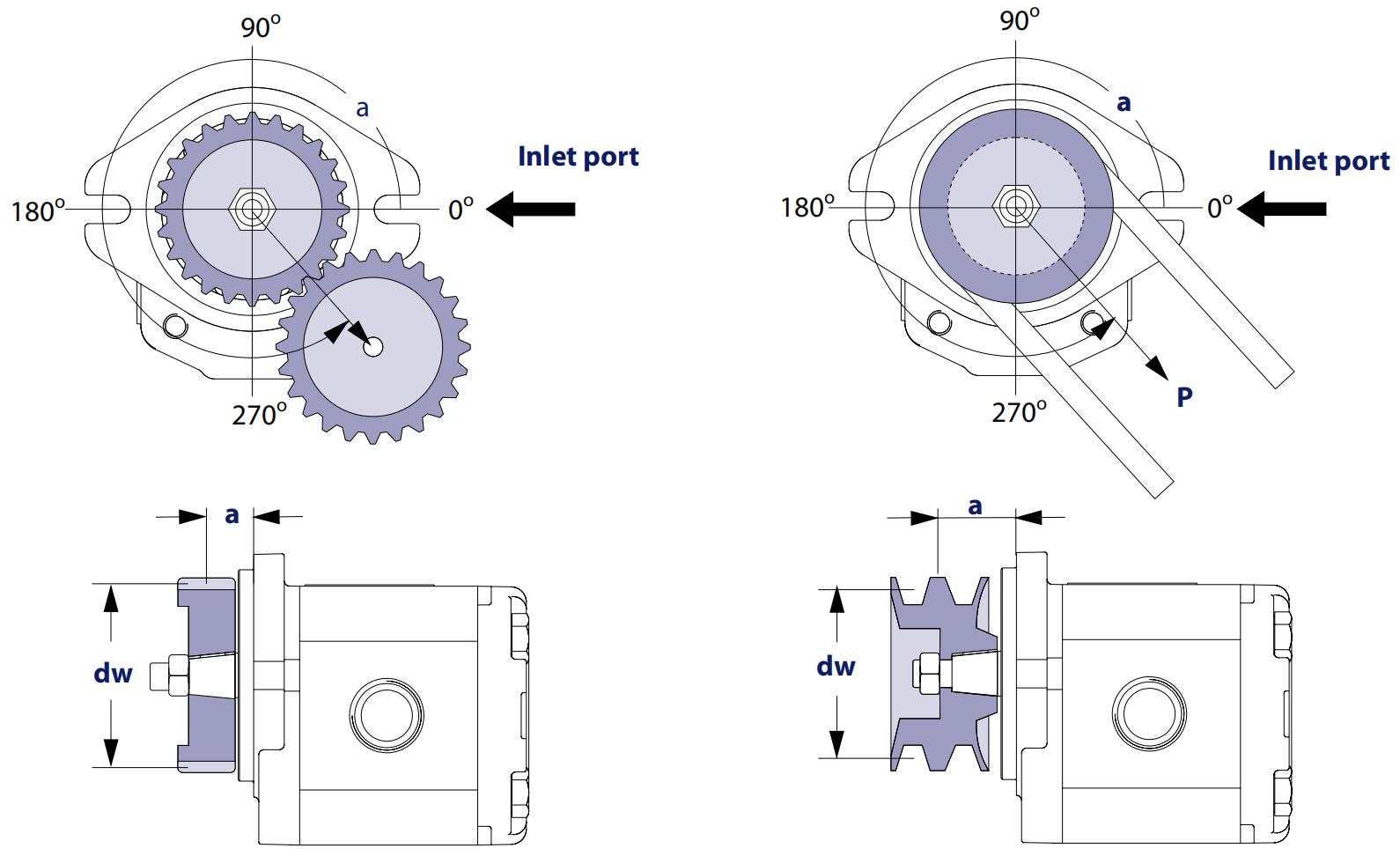

PUMP DRIVE LAYOUT
