Features and benefits

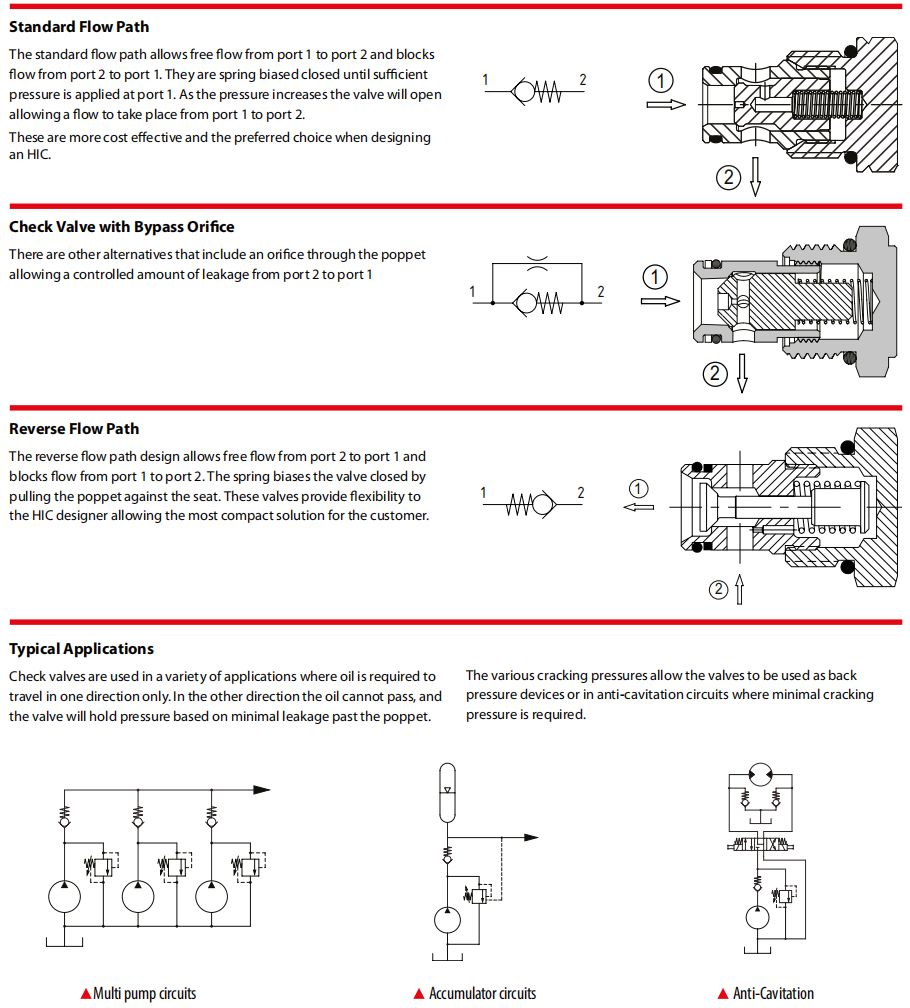

- Standard check valves are suitable for most applications; these valves have fully guided poppets that always block flow from 2 to 1 (see section below).
- Integral orifices are available in some models for free flow in one direction and controlled speed in the opposite direction.
- Reverse flow options available where housing or size constraints require an opposite flow path.
- These valves have guided poppets that block flow from 1 to 2 and are spring biased closed until sufficient pressure is applied at 2 to open flow to 1.
- Slip-in check valves utilize small cavities retained by SAE plugs or other cartridge valves.
- Slip-in check valves are ideal for use in manifolds where space saving is critical.

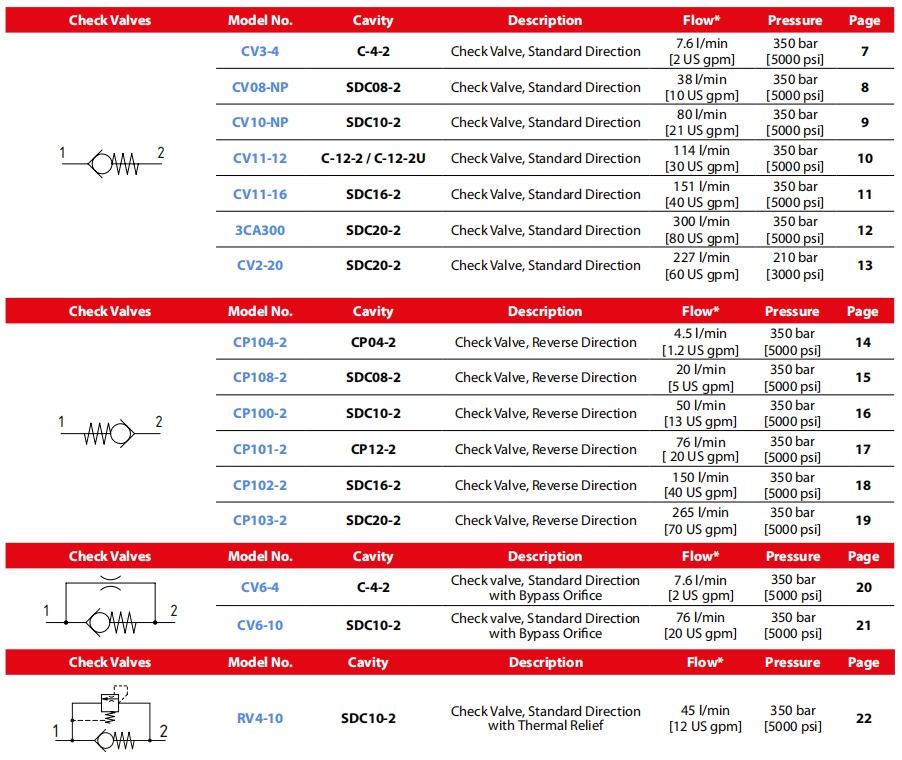

Technical Datas
Applications
- Agriculture
- Construction
- Cranes and material handling
- Forestry
- Lawn and turf
- Road building
