The H1P range is built around an advanced control and available in a wide range of displacements.
It is designed for quality and reliability and offers expanded functionality, greater total efficiency, and easy installation.
One design concept
Single piece swash plate
Electro-hydraulic controls:
Automotive Control (AC)
Fan Drive Control (FDC)
Manual Displacement Control (MDC)
Hydraulic Displacement Control (HDC)
Common control across entire family
Minimized control losses
Improved charge circuit
Lower control pressure for less power consumption
Length optimized pump
Minimum one clean side
Higher corner HP / package size ratio
Standardized connector interface
PLUS+1 Compliant control and sensor options
Integral filtration available with integrated filter bypass sensors and switch
|

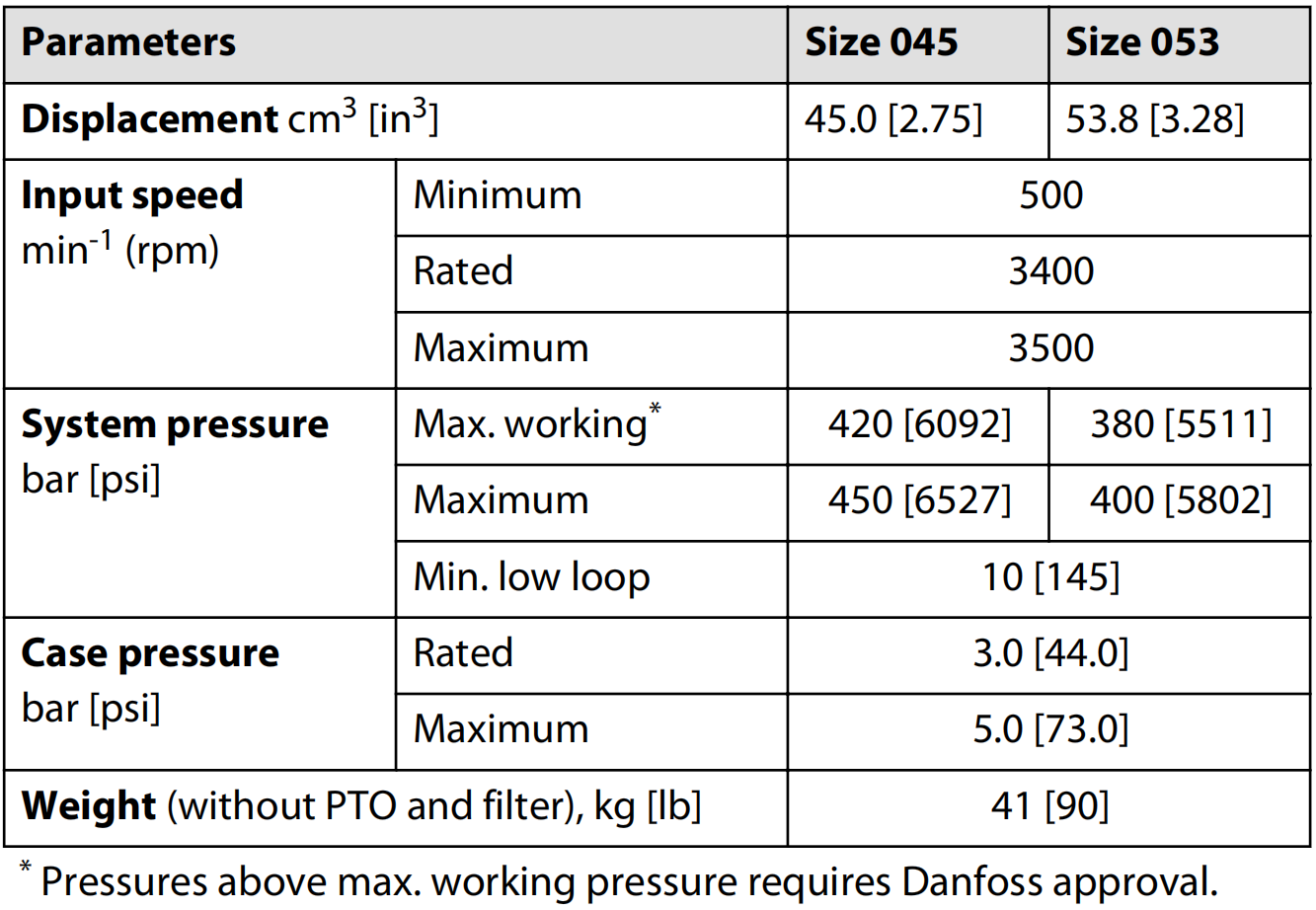

Model |
Displacement cm3 [in3] |
Max.Working |
Rated Speed rpm |
Theoretical Flow l/min [US gal/min] |
Mounting Flanges |
|
045/053 |
45.0 to 53.8 |
380 to 420 |
3,400 |
153 to 183 |
SAE B |
|
060/068 |
60.4 to 68.0 |
380 to 420 |
3,500 |
210 to 238 |
SAE C |
|
069/078 |
69.2 to 78.1 |
450 [6,527] |
3,500 |
243 to 273 |
SAE C |
|
089/100 |
89.2 to 101.7 |
450 [6,527] |
3,300 |
294 to 335 |
SAE C |
|
115/130 |
115.2 to 130.0 |
450 [6,527] |
3,200 |
371 to 419 |
SAE D |
|
147/165 |
147.2 to 165.1 |
450 [6,527] |
3,000 |
441 to 495 |
SAE D |
|
210/250/280 |
211.5 to 280.2 |
420 to 450 |
2600 |
549 to 728 |
SAE E |
Skid steer loaders
Trenchers
Asphalt pavers
Windrowers
Aerial lifts
Turf care equipment
Vibratory rollers
