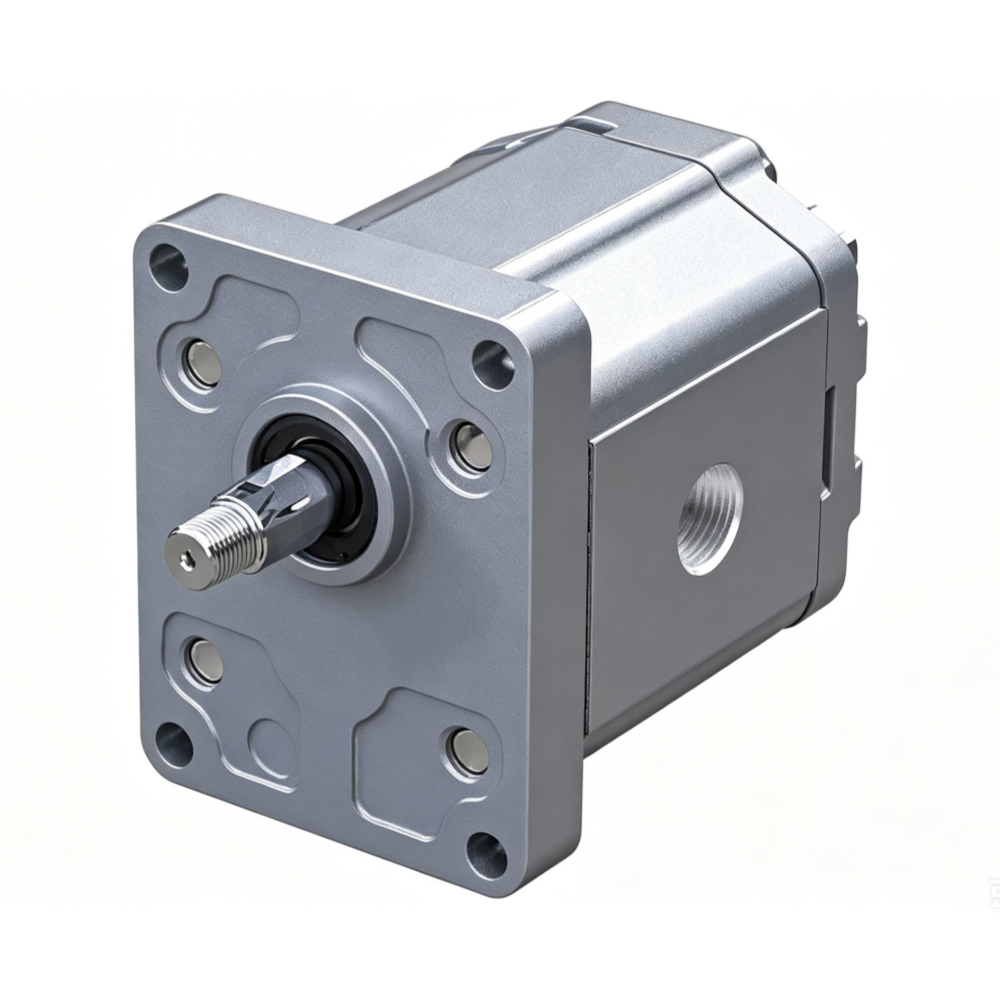

Danfoss GearMe Aluminum Group 2 Gear Motor

No.SNM2NN / SNU2NN / SKU2NN

Three groups of frame sizes (Group 1, 2 and 3).
Displacements from 2.6 to 90 cm3/rev [from 0.158 to 5.49 in3/rev].
Available in uni-and bidirectional version for all the frame sizes, displacements and configurations.
Rated pressure up to 250 bar [3625 psi].
Back pressure capability up to 250 bar [3625 psi].
Speeds up to 4000 rpm for Group 1 and 2, and up to 2500 rpm for Group 3.
SAE, ISO and DIN mounting flanges and shafts.
Available with integrated relief valve in the Group 2 frame size and integrated anti-cavitation valve in Group 2 and Group 3 frame sizes.

Variations

Edit selections

Displacement: 6 cm3 /rev

6 cm3 /rev

8.4 cm3 /rev

10.8 cm3 /rev

14.4 cm3 /rev

16.8 cm3 /rev

19.2 cm3 /rev

22.8 cm3 /rev

25.2 cm3 /rev

Select variations and quantity

Displacement: 6 cm3 /rev

The min. inquiry quantity is 0. Add 0 more to continue.

6 cm3 /rev

8.4 cm3 /rev

10.8 cm3 /rev

14.4 cm3 /rev

16.8 cm3 /rev

19.2 cm3 /rev

22.8 cm3 /rev

25.2 cm3 /rev

Subtotal

Download

View all downloads

Description

Benefits

Pressure-balanced design, ensuring sealing pressure adapts automatically to operating conditions for improved overall eciency and minimum energy losses.
Minimized internal friction and perfectly tted housing for an extended operating life.
Modular and short versions of multi-stage units for high exibil ity and compactness.
Teon coated bushings for extended life under extreme temperature and pressure conditions.
One piece gear shaft construction.
Broad range of shaft drives, integrated valves, and side or rear port options gives great exibility in system design.
Internal spline option for high pressure capability and highest power density.
Flex Program to ensure high customization in distribution.
Fan drive option from 8cc to 44cc with dust cover,fail safe function,integrated valve package (with various features available like proportional,and anti-cavitation)

SNM2NN

SNM2NN is the group 2 bidirectional motor available in the whole displacements range from 6 up to 25 cm3/rev [from 0.37 up to 1.538 in3/rev].
Configurations include European and SAE flanges and shafts (Code 01BA, 01FA, 01DA, 02AA, 02DB, 03CA,04AA/05AA, 04DB/05DB, 06GA, 06SA).

SNU2NN

SNU2NN is the group 2 unidirectional motor available in the displacements range from 8 up to 25 cm3/rev [from 0.513 up to 1.538 in3 /rev].
SNU2NN motor construction is derived from the correspondent pump SNP2NN.
Configurations include European and SAE flanges and shafts (Code 01BA, 01FA, 01DA, SNU2NN 06SA (cutaway) 02AA, 02DB, 03CA, 04AA/05AA, 04DB/05DB, 06GA, 06SA).

SKU2NN

SKU2NN is the Group 2 unidirectional motor available in the displacements range from 8 up to 25 cm3/rev [from 0.513 up to 1.538 in3 /rev].
SKU2NN motor construction is derived from the correspondent pump SKP2NN.
Configuration includes SAE flange and shaft only (Code 06SA).

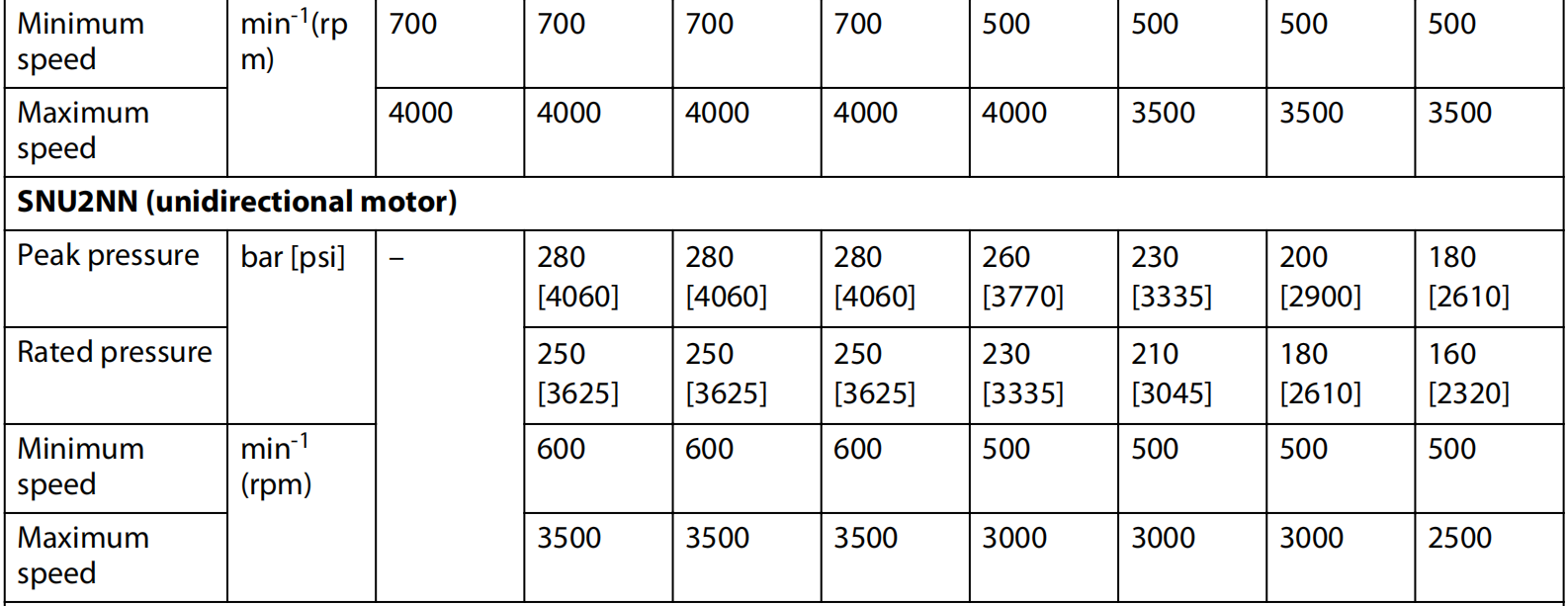

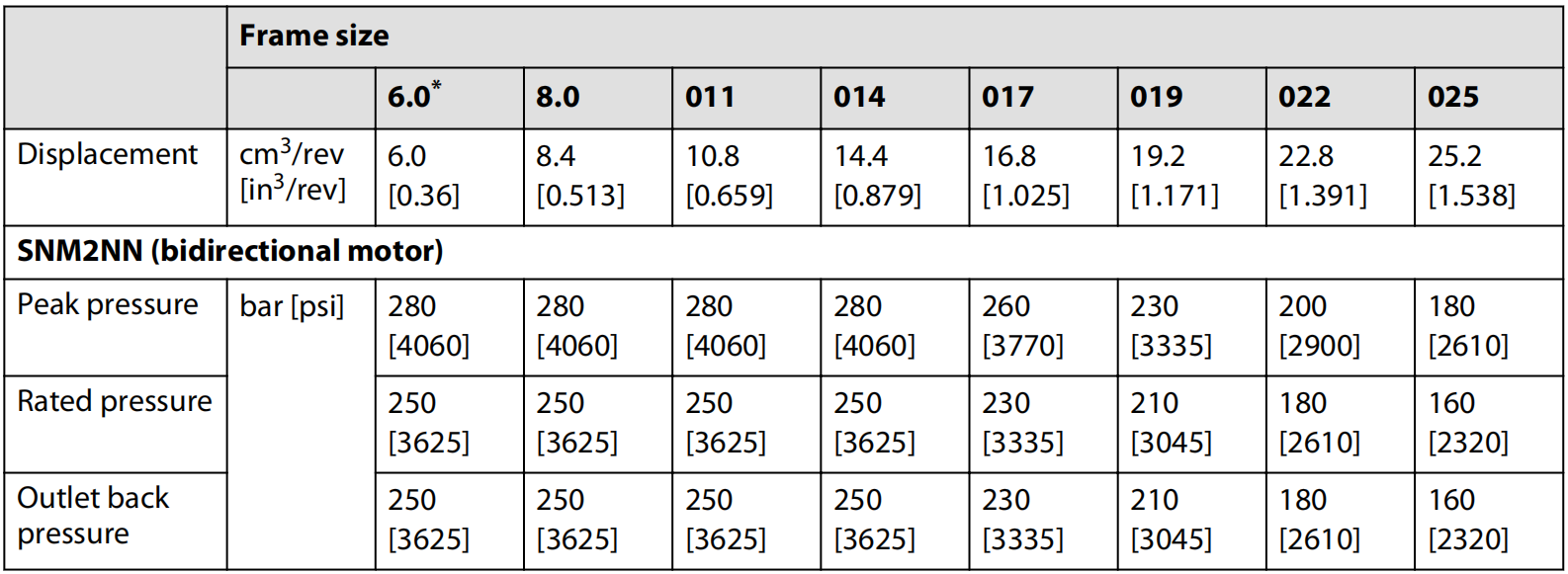

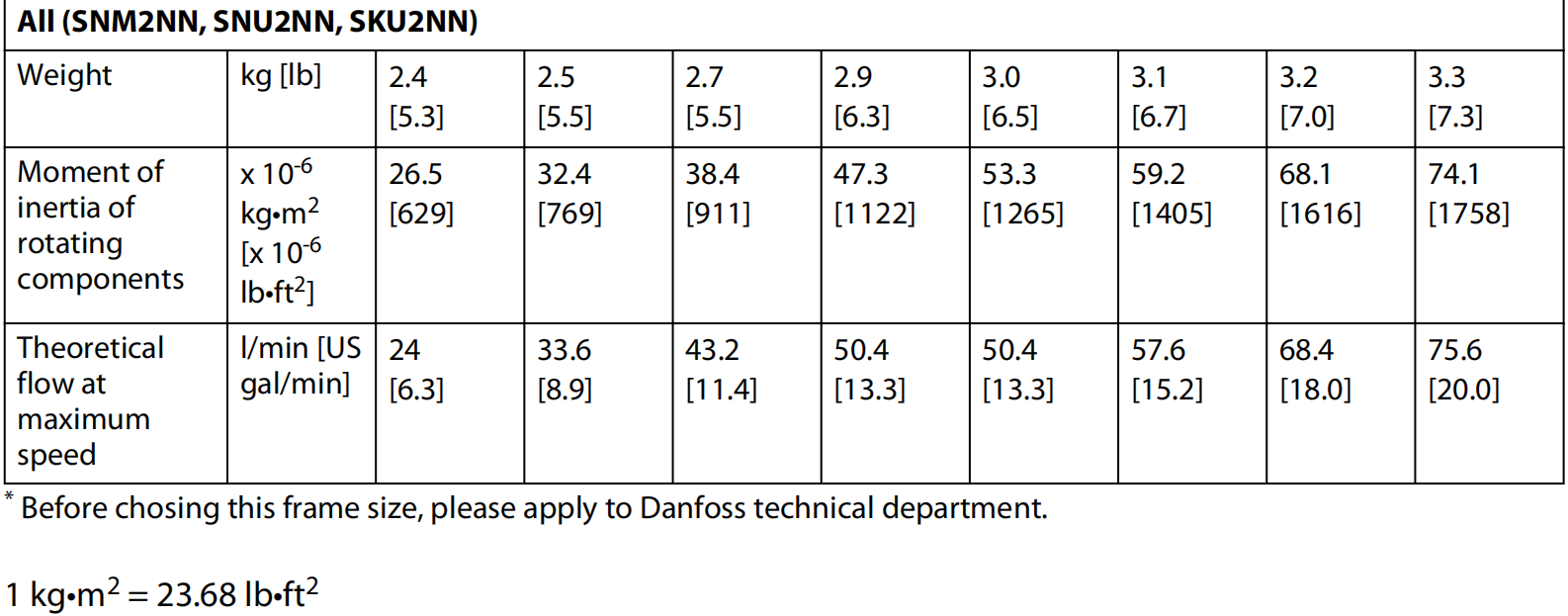

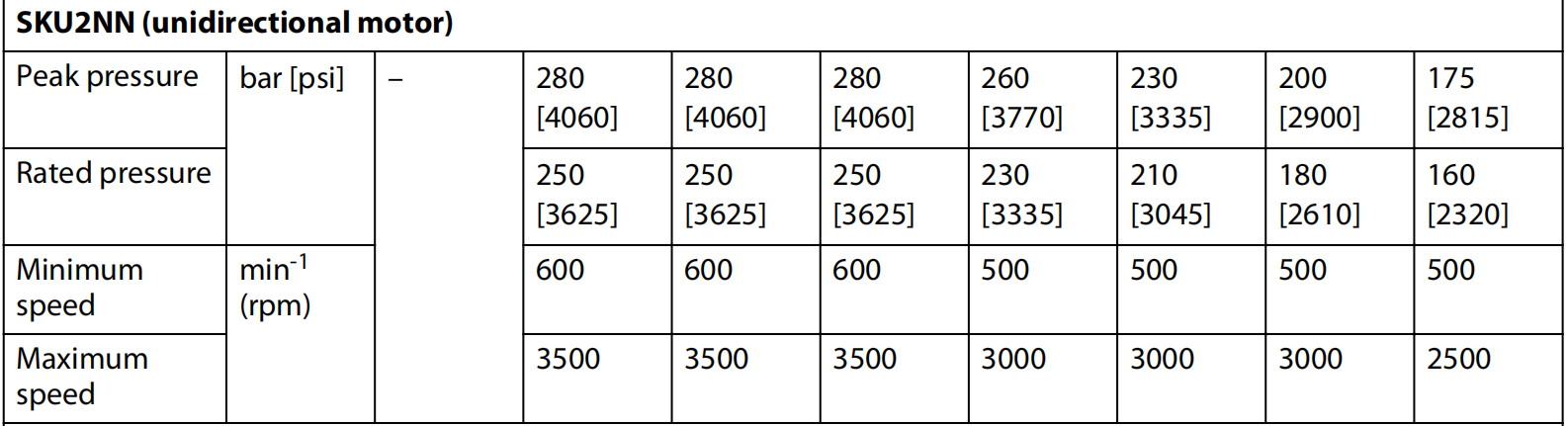

Technical Datas

Applications

Markets
