Benefits
- Pressure-balanced design, ensuring sealing pressure adapts automatically to operating conditions for improved overall eciency and minimum energy losses.
- Minimized internal friction and perfectly tted housing for an extended operating life.
- Modular and short versions of multi-stage units for high exibil ity and compactness.
- Teon coated bushings for extended life under extreme temperature and pressure conditions.
- One piece gear shaft construction.
- Broad range of shaft drives, integrated valves, and side or rear port options gives great exibility in system design.
- Internal spline option for high pressure capability and highest power density.
- Flex Program to ensure high customization in distribution.
- Fan drive option from 8cc to 44cc with dust cover,fail safe function,integrated valve package (with various features available like proportional,and anti-cavitation)

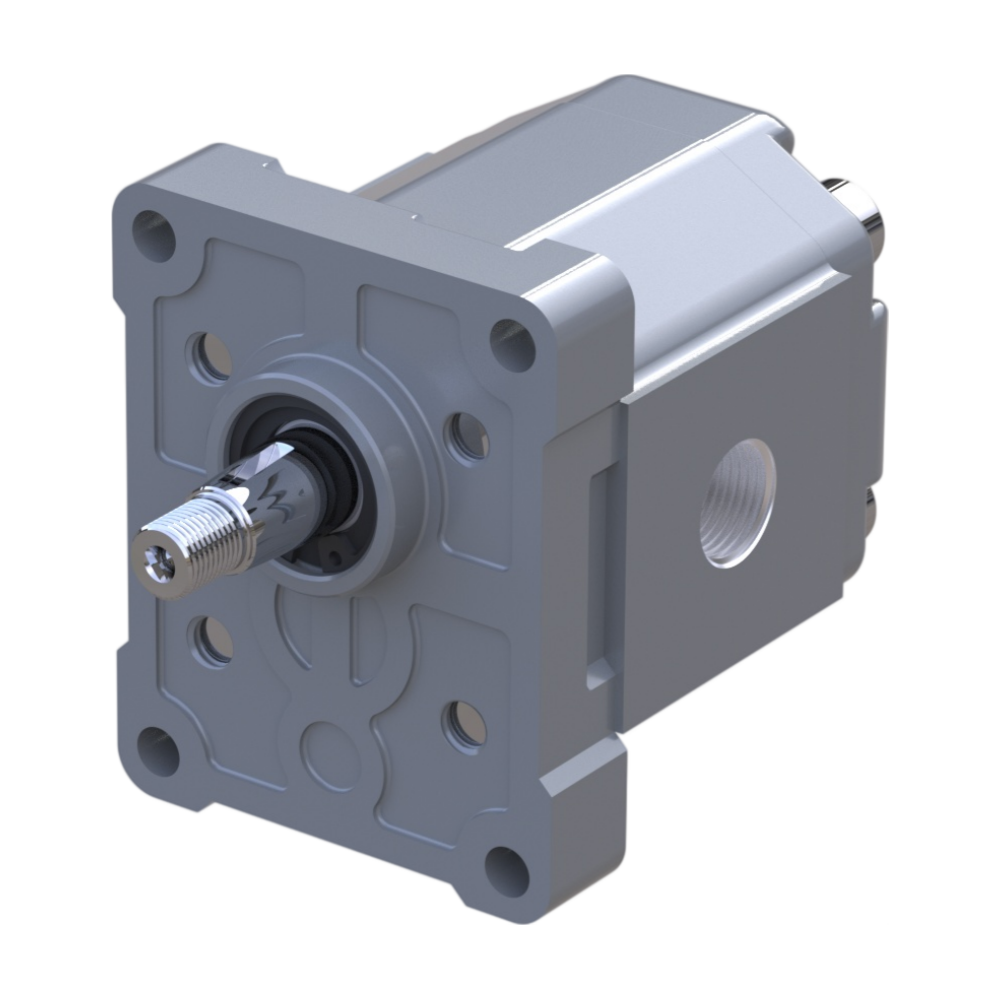

SKM1NN
- SKM1NN is the Group 1 bidirectional motor available in the whole displacements range from 2.6 up to 12 cm3/rev [from 0.158 up to 0.732 in3 / rev].
- Configurations include European and SAE flanges and shafts (Code 01BA, 02BB, 02FA, 06GA, 06SA)
SKU1NN
- SKU1NN is a Group 1 unidirectional motor available in the whole displacements range from 2.6 up to 12 cm3/rev [from 0.158 up to 0.732 in3 /rev].
- SKU1NN motor construction is derived from the correspondent pump SKP1NN.
Configurations include European and SAE flanges and shafts (Code 01BA, 02BB, 02FA, 06GA, 06SA).
SNU1NN
- SNU1NN is a Group 1 unidirectional motor available in a limited displacements range from 2.6 up to 7.8 cm3/rev [from 0.158 up to 0.464 in3 /rev].
- SNU1NN motor construction is derived from the correspondent pump SNP1NN. Configurations include European flange and shaft (Code 01BA).

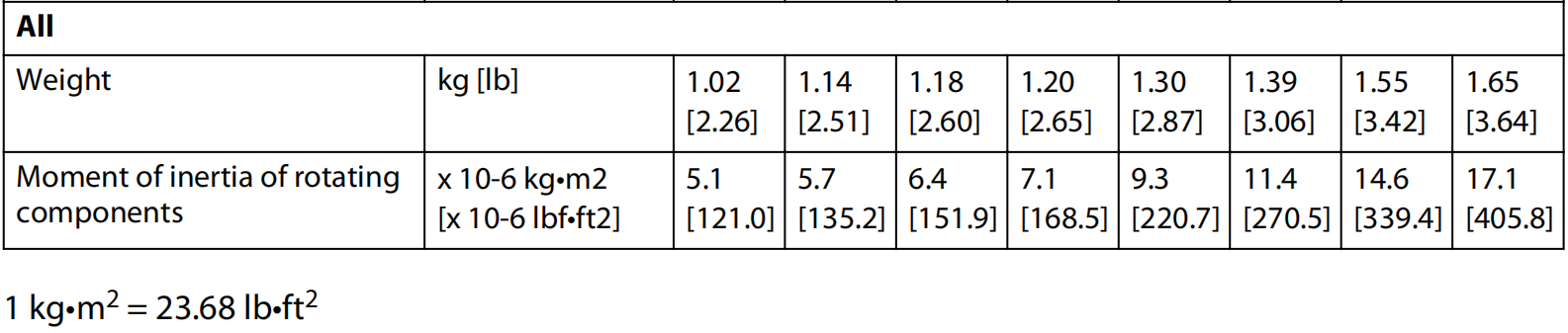

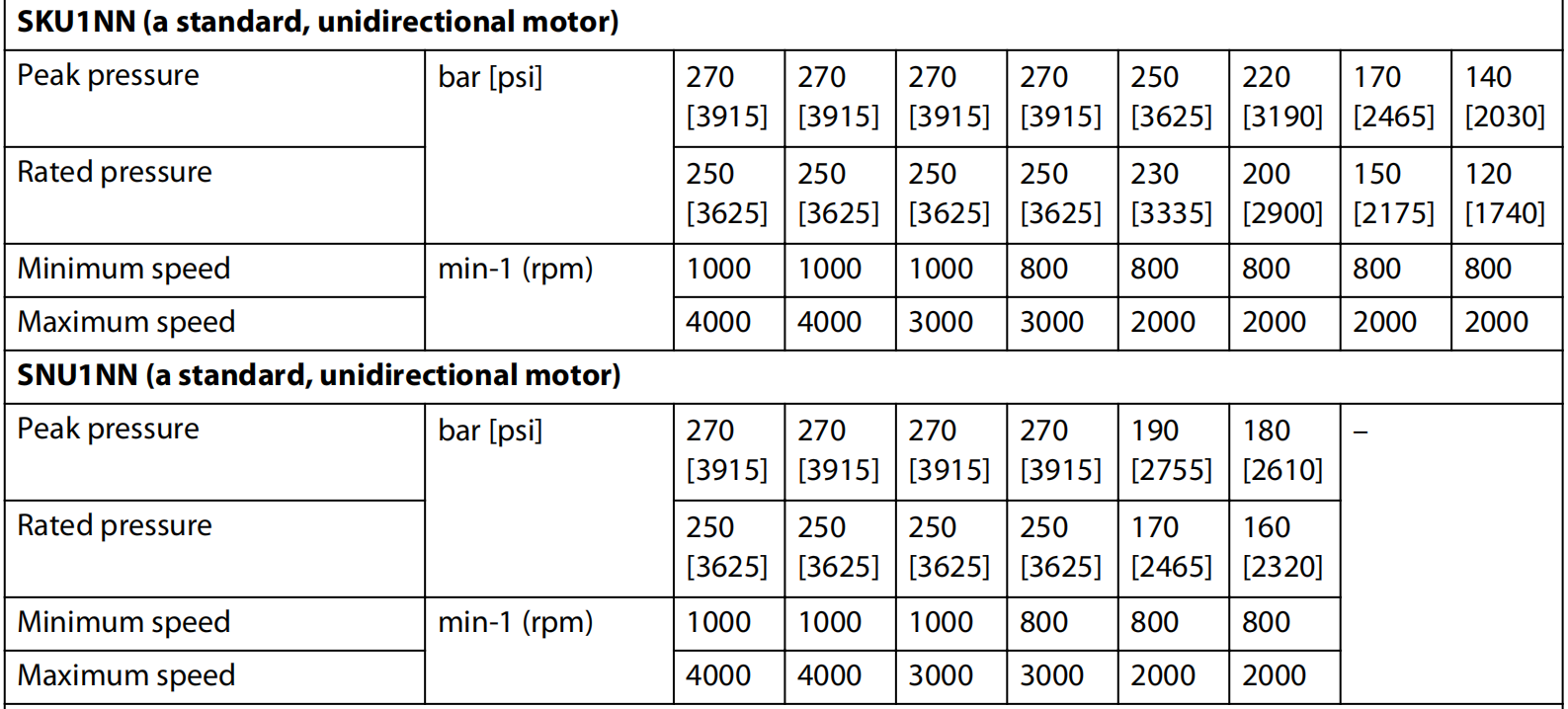

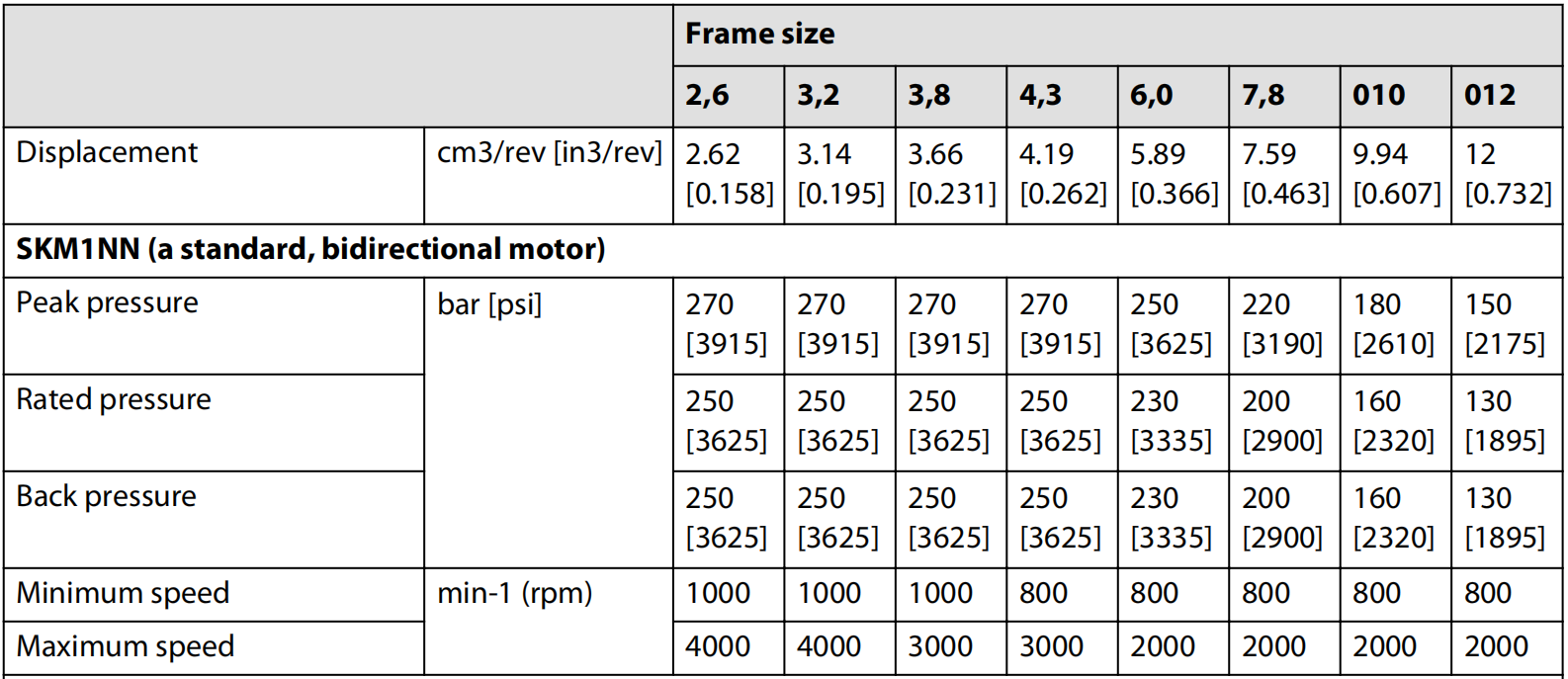

Technical Datas
Applications
- Tractors
- Harvesters
- Wheel Loaders
- Backhoe loaders / Excavators
- Telehandlers
- Machine Tools
- Rollers / Sweepers
- Fan Drive Systems
- Forklifts
- Aerial lifts
- Forestry attachments
Markets
- Construction
- Agriculture
- Earthmoving
- Mining
- Material Handling
- Utility
- Trucks & Bus
- Forestry
- Distribution
