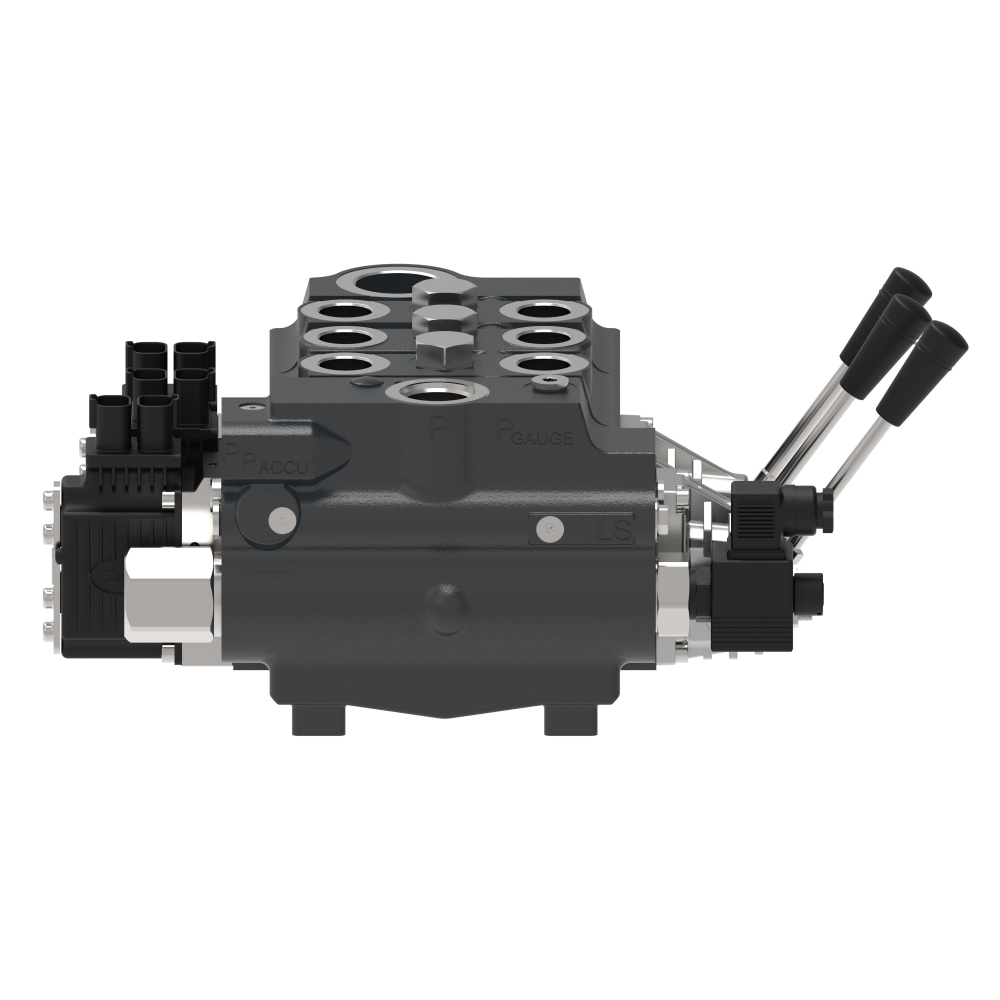

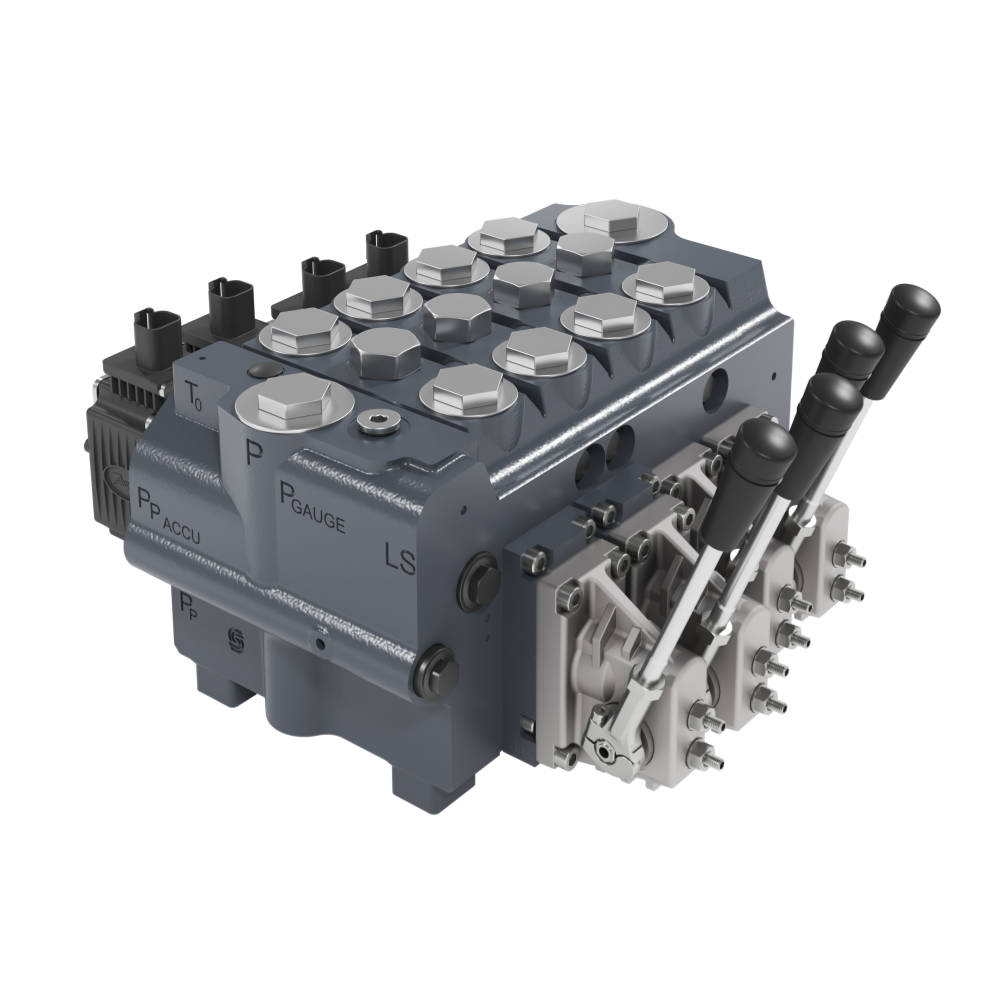

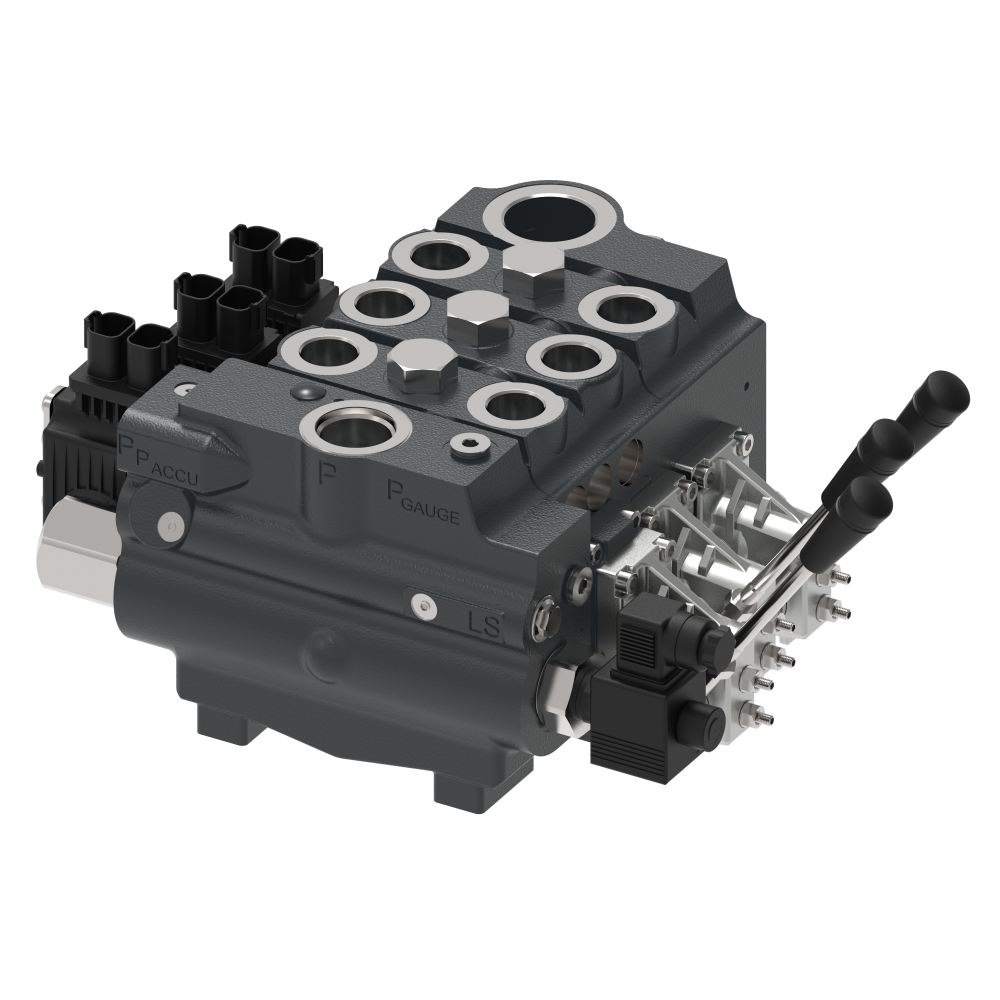

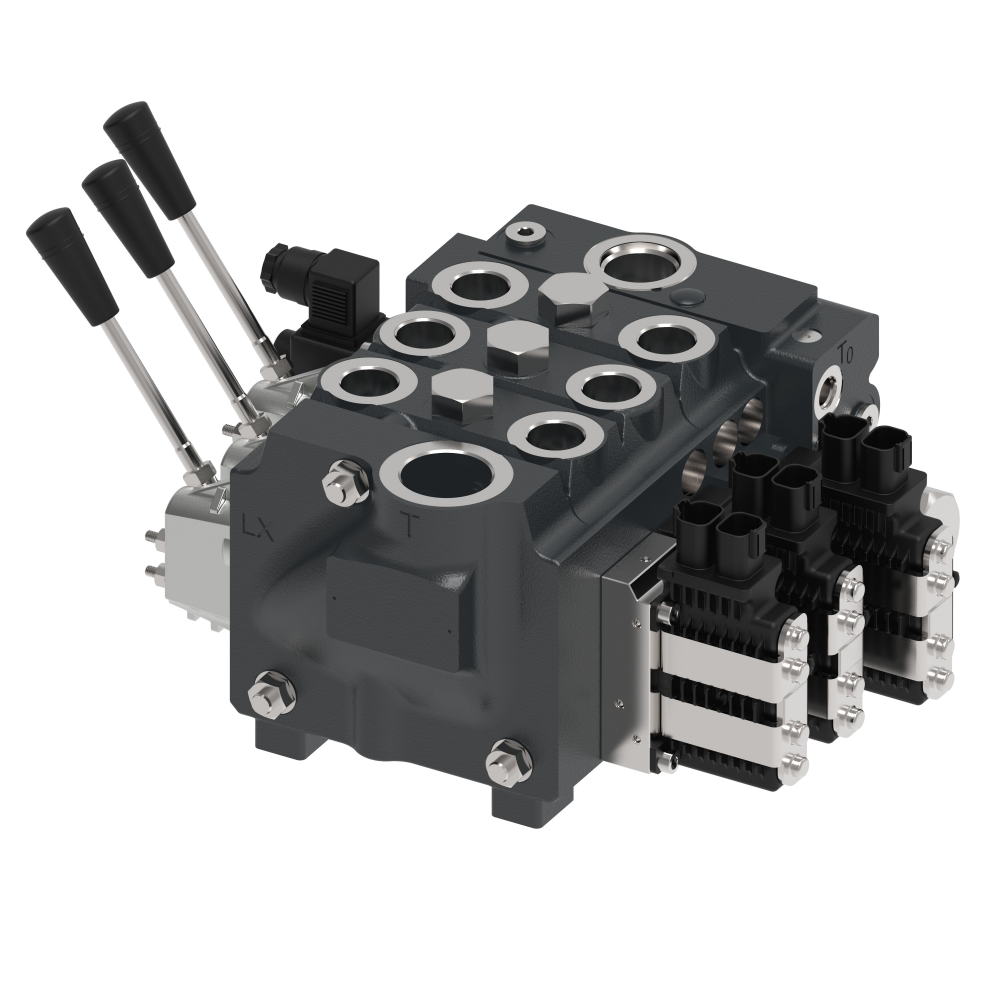

PVG 100 Danfoss Proportional Valve Group Sectional Directional Control Valve

Features

• Flow sharing for maximum controllability and safety. All sections will continue to function regardless of load differences and pump flow.
• Load-independent flow control for smooth operation and improved productivity.
• Load-sensing technology for higher efficiency, safety, reduced energy consumption, and longer system lifetime.
• Configurable as advanced electrically controlled proportional valve as well as load-sensing directional control valve.
• Modular design providing a wide range of configuration possibilities.
• Up to eight different sections per valve group. Maximum flow per section: 180 l/min [48 gpm].
• Can be configured in combination with our range of HIC hybrid modules and/or PVG 32 for maximum flexibility.
• Mechanical, hydraulic, and electrical actuation options.

PVG 100 Valve System

--- PVG 100 is a hydraulic load sensing valve, designed to fulfill efficiency requirements.

--- From a simple load sensing directional valve to an advanced electrohydraulic controlled load independent proportional valve.

--- The PVG 100 modular system makes it possible to build up a valve group to fulfill customer requirements.

--- The compact external dimensions of the valve remain unchanged whatever combination is specified.

General Features PVG 100, Load Independent Flow Control

• Flow sharing for maximum controllability and safety.
• Load-independent flow control for precise operation and improved productivity.

‒ Oil flow to an individual function is independent of the load pressure of this function regardless of sufficient or insufficient pump flow.

‒ Oil flow to one function is independent of the load pressure of other functions regardless of sufficient or insufficient pump flow.

• Load-sensing technology for higher efficiency, safety, reduced energy consumption, and longer system lifetime.
• Configurable as an advanced electrical, hydraulic or mechanically operated proportional load-sensing valve.
• Open spool-ends for system integrating mechanical cable or linkage actuation.
• Modular design providing a wide range of configuration possibilities.
• Up to eight different sections per valve group (maximum flow per section: 240 l/min [63.4 gal/min])
• Can be configured in combination with PVG 32 (with T0) for maximum flexibility (up to 20 basic valve modules per valve group).
• Optimized return flow characteristics, which minimizes pressure loss.
• Low weight.
• Compact design and installation.
• BSP and UNF connection threads.
