Series 90 hydrostatic pumps and motors can be applied together or combined with other products in a system to transfer and control hydraulic power.
They are intended for closed circuit applications.
Series 90 variable displacement pumps are compact, high power density units.
All models utilize the parallel axial piston/slipper concept in conjunction with a tiltable swashplate to vary the pump's displacement.
Reversing the angle of the swashplate reverses the flow of oil from the pump and thus reverses the direction of rotation of the motor output.

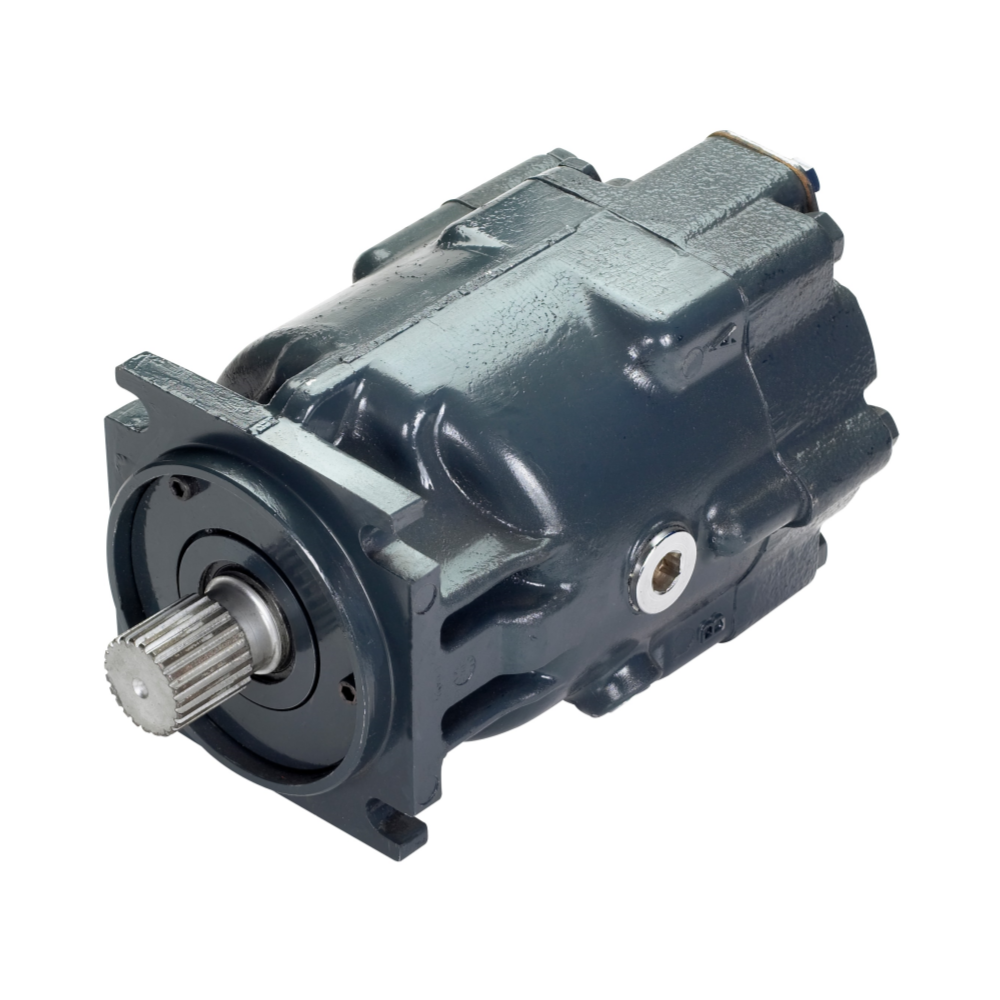

Series 90 motors use the parallel axial piston/slipper design in conjunction with a fixed swashplate.
They can intake/discharge fluid through either port;they are bidirectional.
They also include an optional loop flushing feature that provides additional cooling and cleaning of fluid in the working loop.

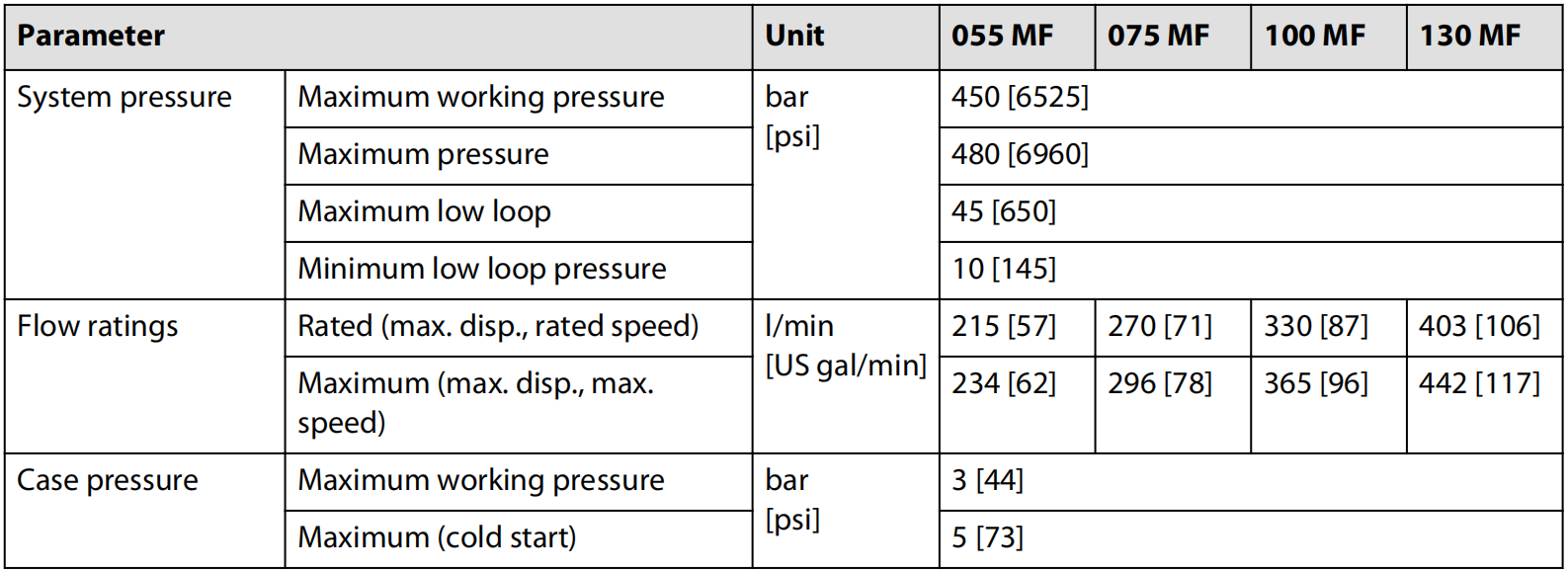

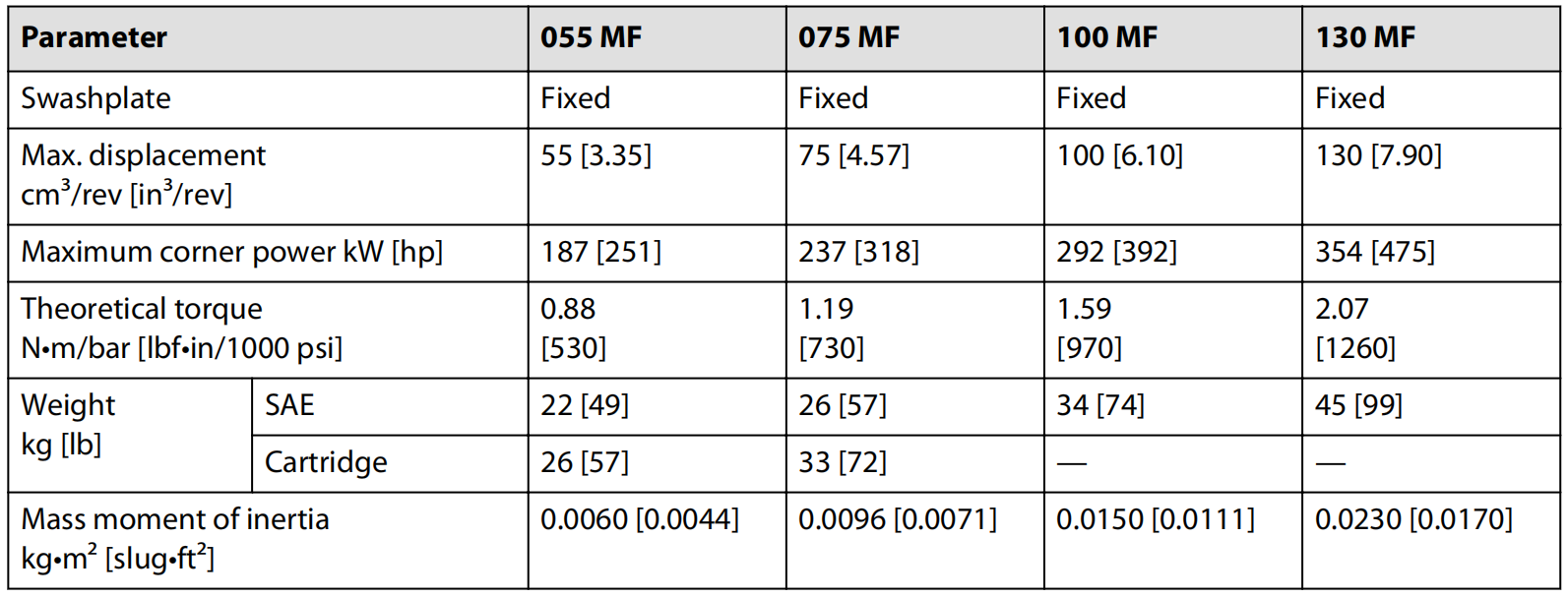

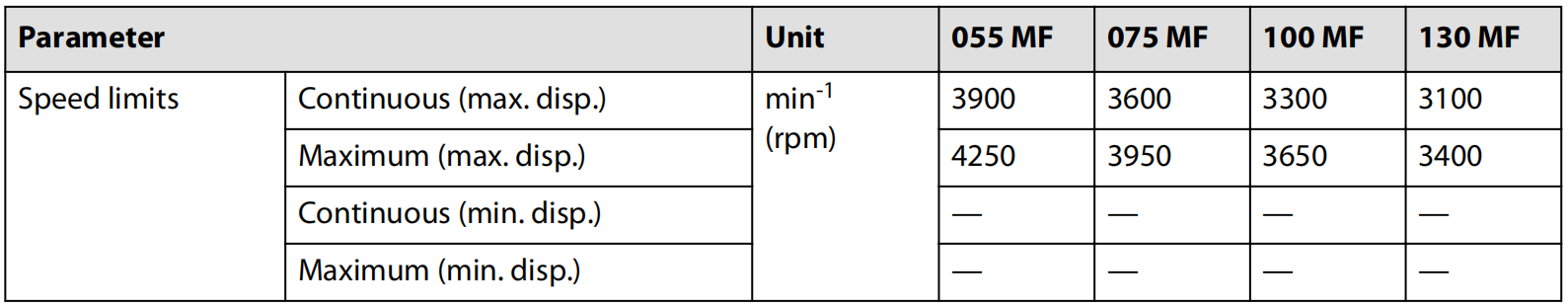

Technical Datas
