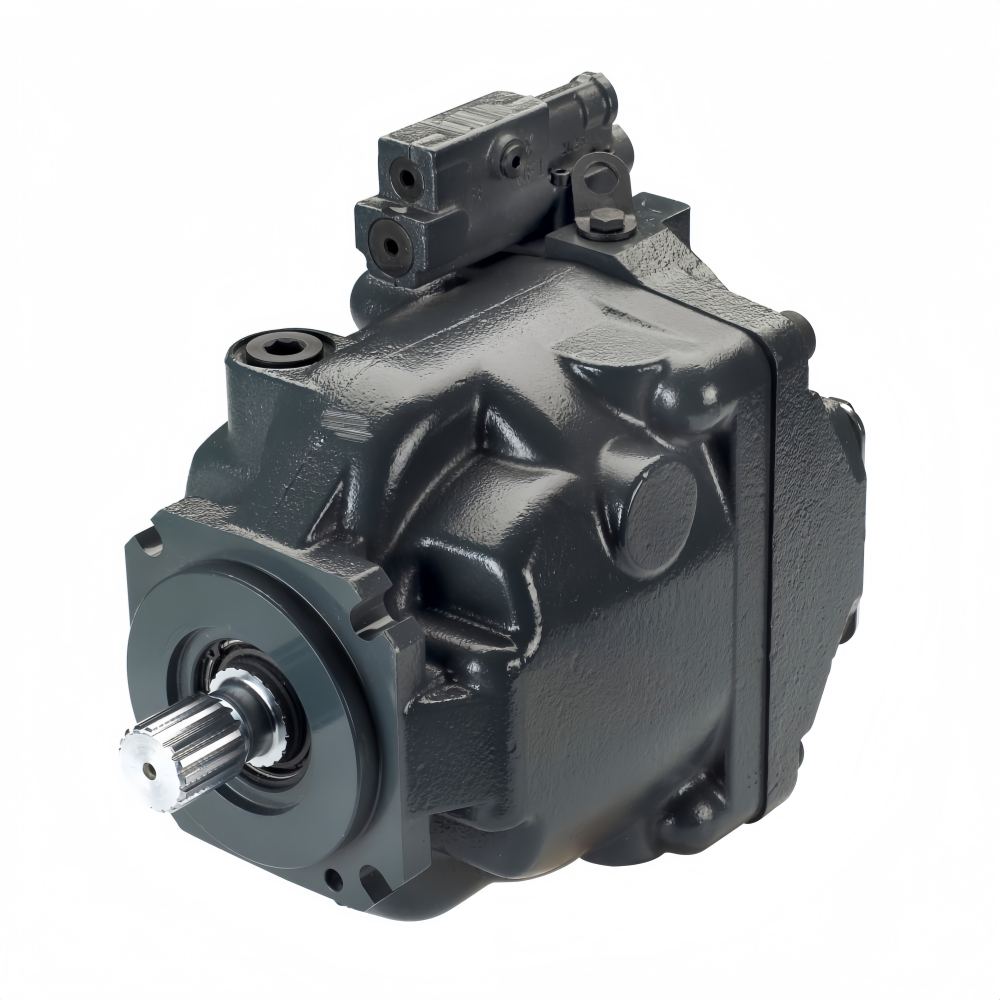

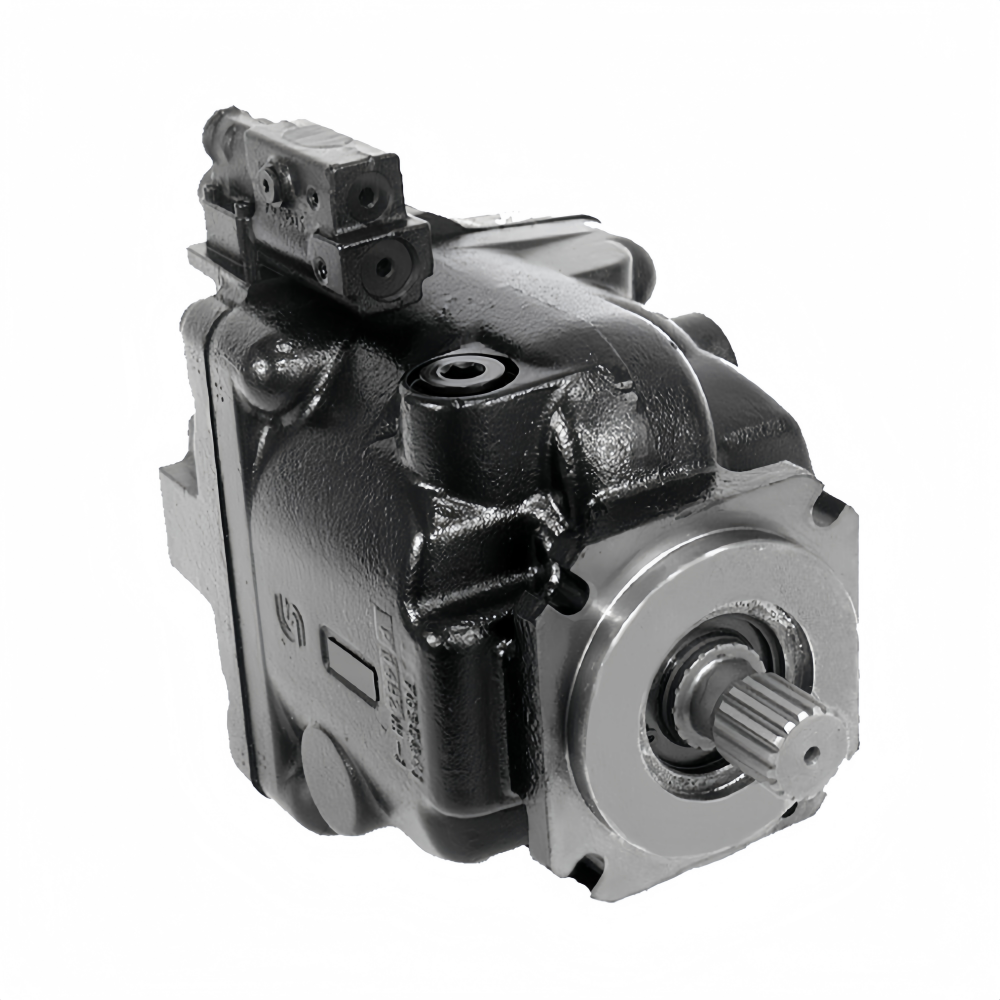

Danfoss Series 45 FRAME E Axial Piston Pump

No.Frame E

Series 45 is a complete family of high performance variable displacement, axial piston pumps. Each frame is designed to exceed the demanding work function requirements of the mobile equipment marketplace. Each frame within the Series 45 family is uniquely designed to optimize performance, size, and cost

Latest Technology

Customer-driven using quality function deployment (QFD) and design for manufacturability (DFM) techniques.
Optimized design maximizes efficiency and quiet operation.
Computer-modeled castings to optimize inlet conditions for maximum pump speed.
Compact package size minimizing installation space requirements.
Heavy-duty tapered roller bearings for long life.
Single piece rigid housing to reduce noise and leak paths.
Integrated controls for high speed response and system stability.

Variations

Edit selections

Displacement: 100 cm3 /rev

100 cm3 /rev

130 cm3 /rev

147 cm3 /rev

Select variations and quantity

Displacement: 100 cm3 /rev

The min. inquiry quantity is 0. Add 0 more to continue.

100 cm3 /rev

130 cm3 /rev

147 cm3 /rev

Subtotal

GET A QUOTE

Download

View all downloads

Description

Reliability

Designed to rigorous standards.
Proven in both laboratory and field.
Manufactured to rigid quality standards.
Long service life.
Significantly fewer parts.
No gasket joints.
Robust input shaft bearings to handle large external shaft loads.
Integrated gauge ports for monitoring operating conditions.

Reduced Installation Costs

Through-drive capability for multi-circuit systems.
Range of mounting flanges, shafts and porting options for ease of installation.
Compact size minimizes installation space requirements.
Help meet engine emission standards.
Reduce engine size by managing power usage more effectively.

Reduce Operating Costs

Optimize machine power usage to maximize fuel economy.
Simple design reduces service requirements.
Heavy duty taper roller shaft bearings provide long service life.
Reduced noise for operator comfort.
High performance increases productivity.

Reduced Heat Load on Cooling System

High efficiency reduces hydraulic heat generation.
Allows for smaller cooling packages.

Technical Datas

Pump		Displacement		Speed			Pressure				Theoretical flow (at rated speed)		Mounting
Frame	Model	cm³	in³	Continuous (min⁻¹)	Max. (min⁻¹)	Min. (min⁻¹)	Cont. (bar)	Cont. (psi)	Max. (bar)	Max. (psi)	US gal/min	l/min	Flange
Frame K2	K2-25C	25	1.53	3450	3750	500	260	3771	350	5076	22.8	86.3	SAE B-2 bolt
	K2-30C	30	1.83	3200	3450	500	260	3771	350	5076	25.4	96.0	SAE B-2 bolt
	K2-38C	38	2.32	2900	3050	500	260	3771	350	5076	29.1	110.2	SAE B-2 bolt
	K2-40C	40	2.44	3100	3200	500	260	3771	350	5076	34.5	124	SAE B-2 bolt
	K2-45C	45	2.75	2900	3050	500	260	3771	350	5076	34.5	130.5	SAE B-2 bolt
Frame J	J45B	45	2.75	2800	3360	500	310	4495	400	5800	33.3	126.0	SAE B 2-bolt； SAE C 2 and 4-bolt
	J51B	51	3.11	2700	3240	500	310	4495	400	5800	36.4	137.7	SAE B 2-bolt； SAE C 2 and 4-bolt
	J60B	60	3.66	2600	3120	500	310	4495	400	5800	41.2	156.0	SAE B 2-bolt； SAE C 2 and 4-bolt
	J65C	65	3.97	2500	3000	500	260	3770	350	5075	42.9	162.6	SAE B 2-bolt； SAE C 2 and 4-bolt
Frame E	E100B	100	6.10	2450	2880	500	310	4495	400	5800	64.7	245.0	SAE C 4-bolt
	E130B	130	7.93	2200	2600	500	310	4495	400	5800	75.5	286.0	SAE C 4-bolt
	E147C	147	8.97	2100	2475	500	260	3770	350	5075	81.5	308.7	SAE C 4-bolt
Frame F	F74B	74	4.52	2400	2800	500	310	4495	400	5800	46.9	177.6	SAE B 2-bolt； SAE C 4-bolt
Frame F	F90C	90	5.49	2200	2600	500	260	3770	350	5075	52.3	198	SAE B 2-bolt； SAE C 4-bolt

Typical Applications
Cranes
Telescopic handlers
Forklift trucks
Wheel loaders
Sweepers
Backhoe loaders
Forestry and agricultural machinery
Fan drives
Paving Machines
Mining Equipment
Mowers
Dozers
Drilling Machines
Mini-Excavators
